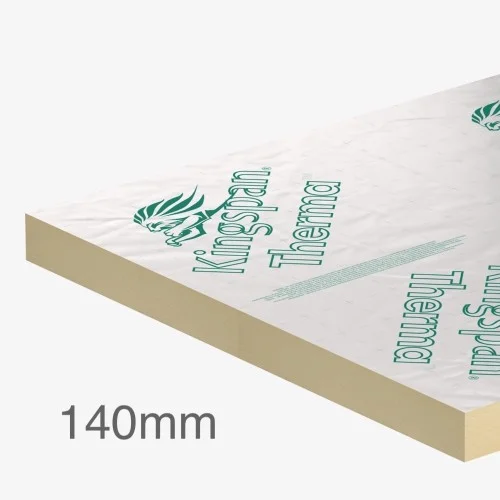

140mm Thermafloor TF70 PIR Insulation Board Kingspan (pack of 2)

140mm Thermafloor TF70 PIR Insulation Board Kingspan (pack of 2)
140mm Thermafloor TF70 PIR Insulation Board Kingspan (pack of 2)
Guide Price: £376.82 (£452.18 inc VAT)
Price per m2: £65.42/m2 (£78.50 inc VAT)
5 or more £365.88 (£439.06 inc VAT)
10 or more £360.18 (£432.22 inc VAT)
20 or more £354.25 (£425.10 inc VAT)
  • Product Code: A1-510
  • Delivery Time: 1 - 5 working days
  • Due to nationwide shortage of PIR insulation lead time may be longer for this product.
  • Brand: Kingspan
  • (Tech. support: 01544388601)
  • Model and Size: TF70 - 1200x2400
  • Weight: 12.90kg
Our ratings on 23-04-2024:
TrustPilot Review 4.6
4.6 out of 5 - Excellent
Google My Business Reviews
4.8 out of 5

140mm Thermafloor TF70 PIR Insulation Board Kingspan (pack of 2)

Width: 1200mm
Length: 2400mm
Coverage: 5.76m2
Density: 32kg/m3
Weight/m2: 4.48kg
Weight: 12.9kg
Thermal Conductivity: 0.022W/mK
R-Value: 6.36m2K/W
Compressive Strength: 140kPa
Fire Rating (Reaction to Fire): F

140mm Kingspan TF70 comprises a high performance rigid thermoset insulation core faced on both sides with a low emissivity composite foil facing.

CHARACTERISTICS
  • High performance rigid thermoset insulation
  • No requirements for a vapour control layer
  • Quick response floor heating - prevents heat loss through 'heat sump'
  • Minimises the cost of related items - soil removal, DPM's service connections
  • Resistant to passage of water vapour
  • Easy to handle and install
  • Non-deleterious material
APPLICATIONS
  • Solid Concrete Ground Based Floor
  • Beam and Dense Block Floor
  • Suspended Timber Ground Floor
  • Timber Floor on Battens
CERTIFFICATION
Kingspan TF70 is manufactured to the highest standards under a management system under a quality control system approved to:
  • BS / I.S. EN ISO 9001: 2015 (Quality Management Systems. Requirements)
  • BS / I.S. EN ISO 14001: 2015 (Environmental Management Systems. Requirements)
  • BS / I.S OHSAS 18001: 2007 (Health and Safety Management Systems. Requirements)

Kingspan TF70 is manufactured to the highest standards under a quality control system in accordance with draft BS 4841-6
