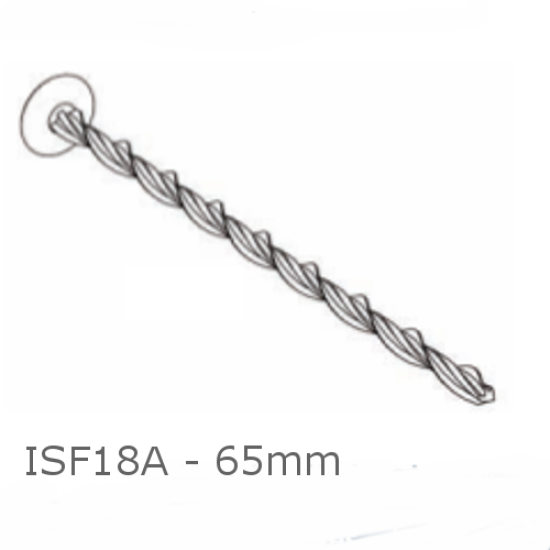

65mm Insofast ISF18A Insulated Plasterboard Fixings (pack of 400) - SDS tool not included.

  • 65mm Insofast ISF18A Insulated Plasterboard Fixings (pack of 400) - SDS tool not included.
  • Product Code: A10-345
  • Brand: Insofast
  • Model and Size: ISF18A - Free Delivery
  • Delivery Time: 1 - 2 days

  • Price: £136.62 (£163.94 inc VAT)


    • 5 or more £133.58 (£160.30 inc VAT)
    • 10 or more £129.54 (£155.45 inc VAT)
    • 20 or more £126.50 (£151.80 inc VAT)
other lengths
Price: £144.88 (£173.86 inc VAT)
show quantity discounts
Price: £153.20 (£183.84 inc VAT)
show quantity discounts
Price: £154.10 (£184.92 inc VAT)
show quantity discounts
Price: £160.22 (£192.26 inc VAT)
show quantity discounts
Price: £166.34 (£199.61 inc VAT)
show quantity discounts

65mm Insofast ISF18A Insulated Plasterboard Fixings (pack of 400) - SDS tool not included.

CSA of shank: 9mm2
Typical load (1mm deflection): Aircrete 649N, Brick 622N, Softwood 681N
Typical pull through: (9.5mm plasterboard) 255N, (12.5mm plasterboard) 340N
Embedment depth: Aircrete Block 50-75mm, Brick/Concrete Block 40-60mm, Softwood 35-50mm
Type of material: Zinc plated Steel

65mm Staifix Insofast Anchor is a one piece metal fastener with a dish profiled head for mechanically securing drywall and insulated plasterboard panels to walls. Prevents dot and dab plasterboard from falling on persons escaping a blazing building, or on persons entering a blazing building for rescue purposes. The fire-proof metal fastener has a self-tapping helical shank with work hardened blades able to cut into a wide range of masonry and timber substrates when driven with an adapter powered by a standard SDS hammer drill.

CHARACTERISTICS
  • Fire-proof mechanical fixing,
  • Helical shaft minimises heat loss through cold bridging,
  • Countersunk head prevents tearing,
  • Dished head retains filler,
  • Dependable performance,
  • Can be used to replace or to complement dot and dab installation,
  • Suitable for fixing into a wide range of construction materials,
  • Fixes panels to lightweight block without pre-drilling.
APPLICATION
  • The anchor drives directly into aircrete (Celcon, Thermalite, etc.) and into softwood timber.
  • Use 5mm pilot hole in brick, concrete block and hardwood.
  • Insofast Anchor is suitable for use with all types of insulated drywall boards: dot and dab adhesive - 3 per board, or without it 12 per board, to ensure stability of the boards in the event of a fire.
  • Cold bridging is minimised due to thermally efficient spiral shaft that has a cross sectional area just 25% of that of a solid shaft of equal diameter. Also by virtue of a fully countersunk head, which indents into the gyproc layer without tearing.

Please note that the SDS tool is not included.
