2m Aluminium Rail System Support Track (pack of 25).
Guide Price
2m Aluminium Rail System Support Track (pack of 25).
Guide Price: £251.04 (£301.25 inc VAT)
- Product Code: A1-2929
- Delivery Time: 1 - 2 days
- Brand: Wemico
- Model and Size: 9116
Our ratings on 02-05-2025:
4.7 out of 5 - Excellent
4.8 out of 5
2m Aluminium Rail System Support Track (pack of 25).
Length: 2000mm
Pack Quantity: 25

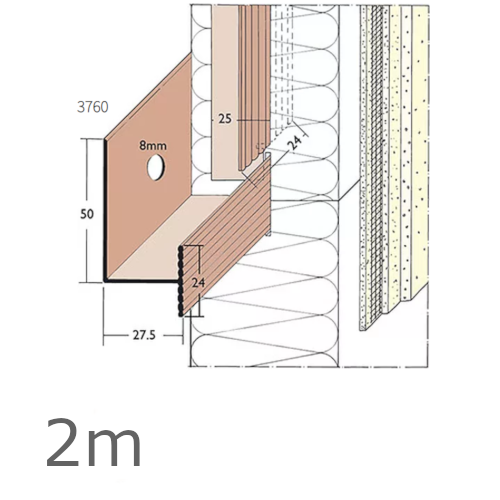

2m Aluminium Rail System Support Track profile to be used in an External Thermal Insulation Systems with EPS. Can be used with other stiff insulation boards.
INSTALLATION
- Fix the starter track of the rail system to the wall with dowel screws to the substrate.
- Dowels should be installed at a max. spacing of 30 cm.
- Apply an adhesive dab on the insulation board to cover at least 20% of the surface.
- The insulation board must have a groove for the rail track to go in (as shown in the above photo).
- Push the insulation board into the rail starter track and press it firmly to the wall.
- Align the boards horizontally and vertically.
- Push in the Wemico Aluminium Rail System Connector vertically.
- Push the intermediate rail system track into the installed boards horizontally.
- Fix the intermediate track with dowel screws.
- Continue to install insulation boards upwards.
Guide Price
Brand: Wemico
Model and Size: 95526
Delivery Time: 1 - 2 days
260mm Aluminium System Starter Track Profile for Curved Walls for 120mm insulation. Slit the back fixing leg and then bend profile around the curve of the wall. ..
Guide Price: £47.22
£56.66 inc VAT
Brand: Wemico
Model and Size: 91223
Delivery Time: 1 - 2 days
A box shaped base profile for 230mm thermal insulation board - also available in Stainless Steel. Larger sizes can be made to order. Connectors and render clips are also available to suit this product...
Brand: Wemico
Model and Size: 90814
Delivery Time: 2 - 3 working days
A box shaped base profile for 140mm thermal insulation board - also available in Stainless Steel. Larger sizes can be made to order. Connectors and render clips are also available to suit this product.We sell this product individually. Please contact us to get prices...
£16.38
£19.66 inc VAT
Brand: Wemico
Model and Size: 9080
Delivery Time: 1 - 2 days
Aluminium Facade Corner Profile Without Covered Cutting Edges - Profile 9080 length of 2.5m. Corner profiles cover the cutting edges of the facade boards and form a clean, precise edge. Vertical corner profiles must be fastened at one fixed point at the top. If conditions require multiple faste..
Guide Price
Brand: Wemico
Model and Size: WEC 791 - 130mm
Delivery Time: 1 - 2 days
The WEC 791 profile has an up-stand that can be pushed under a barge board. This reduces the need for a mastic seal and removes future maintenance issues. This profile also has an increased drip section to improve visual appearance and a large front face to help prevent the water blowing up and soak..
Guide Price: £31.34
£37.61 inc VAT
Guide Price
Brand: Wemico
Model and Size: WE611N
Delivery Time: 1 - 2 days
110mm Perforated Full System Base Bead Profile made from powder coated galvanised steel with PVC nosing which will provide additional protection against abrasion and corrosion. This product can also be used as a window/door head profile. External and Internal Corners and additional sizes made ..
Guide Price: £22.95
£27.54 inc VAT
