2m Aluminium Rail System Support Track (pack of 25).

2m Aluminium Rail System Support Track (pack of 25).
2m Aluminium Rail System Support Track (pack of 25).
Guide Price: £251.04 (£301.25 inc VAT)
  • Product Code: A1-2929
  • Delivery Time: 1 - 2 days
  • Brand: Wemico
  • Model and Size: 9116
Our ratings on 28-03-2024:
TrustPilot Review 4.6
4.6 out of 5 - Excellent
Google My Business Reviews
4.8 out of 5

2m Aluminium Rail System Support Track (pack of 25).

Length: 2000mm
Pack Quantity: 25

2m Aluminium Rail System Support Track profile to be used in an External Thermal Insulation Systems with EPS. Can be used with other stiff insulation boards.


INSTALLATION

  • Fix the starter track of the rail system to the wall with dowel screws to the substrate.
  • Dowels should be installed at a max. spacing of 30 cm.
  • Apply an adhesive dab on the insulation board to cover at least 20% of the surface.

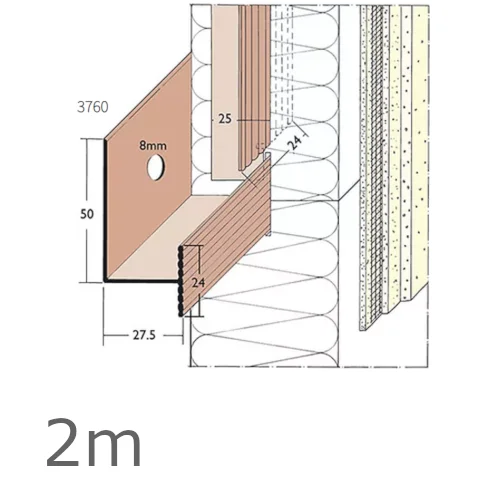

  • The insulation board must have a groove for the rail track to go in (as shown in the above photo).
  • Push the insulation board into the rail starter track and press it firmly to the wall.
  • Align the boards horizontally and vertically.
  • Push in the Wemico Aluminium Rail System Connector vertically.
  • Push the intermediate rail system track into the installed boards horizontally.
  • Fix the intermediate track with dowel screws.
  • Continue to install insulation boards upwards.
