Cellecta Floor Insulation Systems
Cellecta Hexatherm boards are ISO 9001 and 14001 certified, environmentally friendly -- 100% recyclable. Cellecta Hexatherm boards meet Building Regulations of England, Scotland and Wales.
CHARACTERISTICS
- High compressive strength,
- Moisture resistant,
- Excellent life-long thermal performance,
- Quick to install,
- Able to withstand heavy point loads,
- Closed cell structure,
- Suitable for areas in close proximity to water,
- Blown with reclaimed CO2,
- 100% Recyclable,
- Super low U-values achievable.

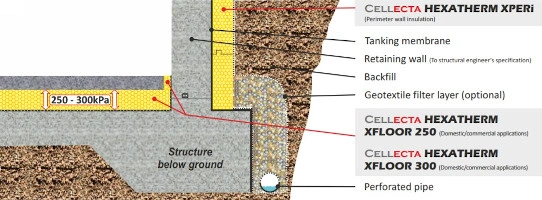

Standard application to thermally insulate a basement

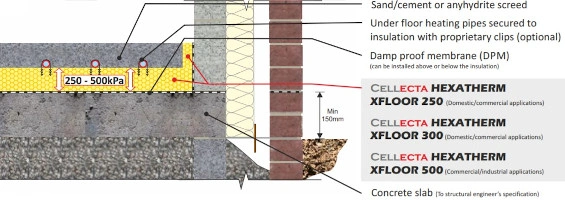

Together with underfloor heating pipes installed

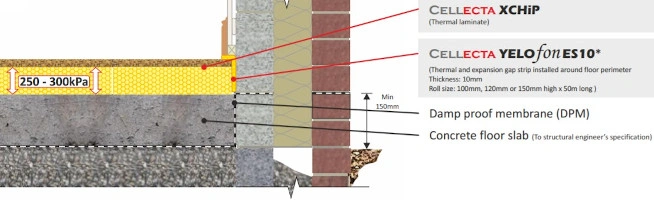

With XChiP floorboards

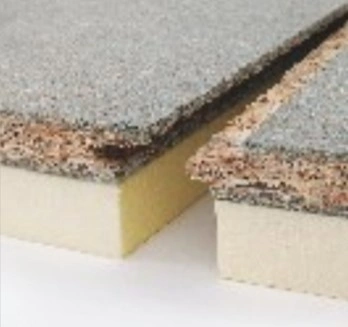

Cellecta XCHiP Hexatherm is a high performance thermal insulation board combined with a P5 moisture resistant, tongue and groove chipboard to produce a high compressive strength, interlocking floor board.

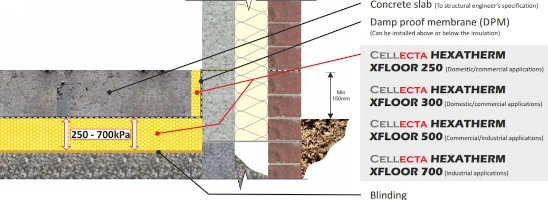

Application as an element of ground bearing element

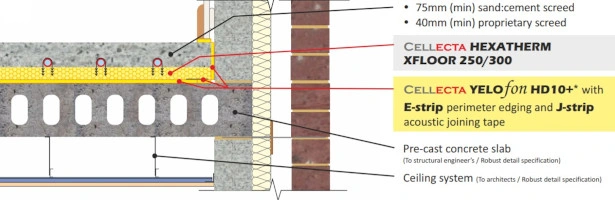

On intermediate floors

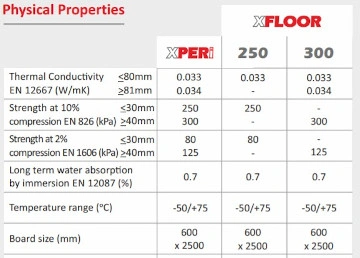

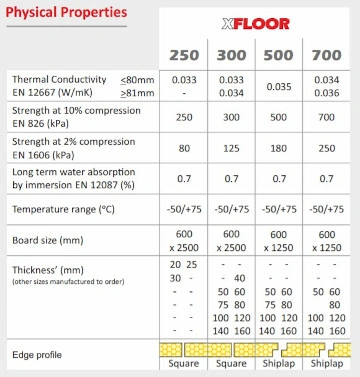

Cellecta XFLOOR and XPERi Hexatherm extruded polystyrene thermal insulation boards have a closed cell structure that provides unrivalled resistance to water absorption and high compressive strength, making them ideal for a multitude of floor requirements, including basement insulating applications, above ground bearing concrete floor slabs, and on suspended beam and block floors. XPERi boards feature an interlocking edge detail and are suitable for fixing externally against basement walls.
YELOfon HD10+ is an acoustic non cross-linked, HCFC free polyethylene resilient layer for underneath a floating screed. This system consists of, YELOfon HD10+ roll, YELOfon E-Strip, a perimeter roll and YELOfon J-Strip Acoustic adhesive joining strip.

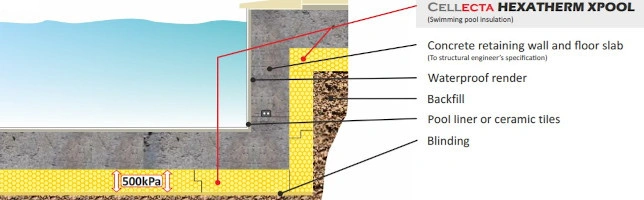

Applied in swimming pools
Cellecta XPOOL Hexatherm is designed specifically for swimming pool applications. The boards have a ultra high resistance to compression - 500kPa and are able to withstand long term high static loads, extremely low water absorption and outstanding thermal performance, providing long term energy savings.

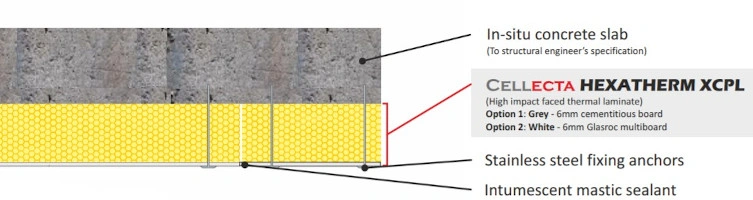

Under car park soffits
Cellecta XCPL Hexatherm is a high performance extruded polystyrene combined with a Class O facing board to produce a composite thermal board to suit car park and soffit lining applications. Available in white and grey.
Guide Price
Brand: Cellecta
Model: 1.2x7.2m - 8.64m2
Delivery Time: 3 - 5 days
Cellecta FIBREfon Micro 50 roll is sound absorbing wool roll made from a unique polyester fibre which provides very high sound absorption properties. Despite its slim design it provides the same acoustic performance as traditional mineral wool products that is twice as thick, which means they not on..
Guide Price: £72.81
£87.37 inc VAT
Guide Price
Brand: Cellecta
Model: 1.5m x 75m - 112.5m2
Delivery Time: 3 - 5 days
Cellecta YELOfon HD5 is a lightweight, easy to cut and install non-cross polyethylene foam, specifically designed to reduce impact noise through concrete floors with a floating screed. When used in conjunction with Cellecta HEXATHERM XFLOOR and DECKfon Ultralay 5, it is Robust detail E-FC-8 complian..
Guide Price: £297.99
£357.59 inc VAT
Guide Price
Brand: Cellecta
Model: 600mm x 1200mm - 0.72m2
Delivery Time: 3 - 5 days
Cellecta ScreedBoard 20 are interlocking high density floor boards for a multitude of flooring applications including bathrooms and kitchens. It is suitable for floors with an underfloor heating system due to its low thermal resistance and rapid heat transfer characteristics and has the lowest therm..
Guide Price: £24.76
£29.71 inc VAT
Guide Price
Brand: Cellecta
Model: 1200x1200mm - 1.44m2
Delivery Time: 3 - 5 days
Cellecta Deckfon Ultramat 15 is an acoustic mat used for significantly improving acoustic insulation of decked timber floors, whenever the ceiling cannot be disturbed and the floor to ceiling height is restricted. The product consists of 3mm high density polymeric barrier and 9 mm resilient layer, b..
Guide Price: £61.93
£74.32 inc VAT
Guide Price
Brand: Cellecta
Model: 600x2400mm - 1.44m2
Delivery Time: 3 - 5 days
Cellecta Deckfon 17T is an acoustic overlay board designed for conversion and refurbishment projects, where the joists are covered with a timber decking and the ceiling is to be replaced, in order of improving acoustic performance. The same effect can be reached in concrete floors, where the impact ..
Guide Price: £35.46
£42.55 inc VAT
Guide Price
Brand: Cellecta
Model: 600x2400mm - 1.44m2
Delivery Time: 3 - 5 days
Cellecta Deckfon Chip 26T is an overlay treatment designed for conversion and refurbishment projects, especially used when the ceiling is to be replaced and joist are covered with a timber decking. Due to its excellent acoustic performance, it can also be used to reduce impact sound transmission in ..
Guide Price: £45.79
£54.95 inc VAT
Guide Price
Brand: Cellecta
Model: 600x2400mm - 1.44m2
Delivery Time: 3 - 5 days
39mm Cellecta Deckfon Quattro is an acoustic overlay board designed for conversion and refurbishment projects, laid directly on timber floors and when the ceiling is to be retained. Being a composite floor system, the product consists of four layers, including a decoupling acoustic fleece, 18 mm thi..
Guide Price: £60.19
£72.23 inc VAT
Guide Price
Brand: Cellecta
Model: 600x2400mm - 1.44m2
Delivery Time: 3 - 5 days
Cellecta Deckfon 37T is an acoustic overlay board designed for conversion and refurbishment projects, laid directly on timber floors and when the ceiling is to be replaced, in order of improving its acoustic performance. The product has 15 mm resilient open-cell layer, made from recyclable flexible ..
Guide Price: £49.13
£58.96 inc VAT
Guide Price
Brand: Cellecta
Model: 12 mm
Delivery Time: 3 - 5 days
Cellecta Deckfon Cradles are used for easy and quick uneven floors levelling. Incremental, high impact plastic packets are inserted between the timber batten and the cradle, in order of levelling the floor and the process is finalized when the battens are covered with a timber deck.APPLICATIONCellec..
Guide Price: £212.40
£254.88 inc VAT
Brand: Cellecta
Model: 600x2500mm - 1.50m2
Delivery Time: 2 - 4 days
20mm Hexatherm XFLOOR 250 extruded polystyrene thermal insulation boards are designed specifically for domestic, commercial and industrial flooring applications where a high resistance to compression and water absorption is required. XFLOOR floor insulation boards are ideal for a multitude of f..
Brand: Cellecta
Model: 600x2500mm - 1.50m2
Delivery Time: 2 - 4 days
40mm Hexatherm XFLOOR 300 extruded polystyrene thermal insulation boards are designed specifically for domestic, commercial and industrial flooring applications where a high resistance to compression and water absorption is required. XFLOOR floor insulation boards are ideal for a multitude of floor re..
Brand: Cellecta
Model: 600x1250mm - 0.75m2
Delivery Time: 2 - 4 days
50mm Hexatherm XFLOOR 500 extruded polystyrene thermal insulation boards are designed specifically for domestic, commercial and industrial flooring applications where a high resistance to compression and water absorption is required. XFLOOR floor insulation boards are ideal for a multitude of floor re..
Guide Price
Brand: Cellecta
Model: 45 mm
Delivery Time: 3 - 5 days
DECKfon Batten 45 acoustic battens are designed to be installed on steel, concrete and timber separating floors to deliver excellent soundproofing performance. DECKfon acoustic battens consist of a layer of recycled, low resonance, open-cell, flexible polyurethane foam bonded to an FSC certified tim..
Guide Price: £9.80
£11.76 inc VAT
Brand: Cellecta
Model: 2.4m
Delivery Time: 3 - 5 days
Cellecta HP30 is a 30mm deep high performance double-flange resilient bar used to decouple the ceiling from the floor joists. Its double fixing flanges allows high mass plasterboards to be installed, often eliminating the need for a secondary cross bar.CHARACTERISTICSExcellent acoustic performance,..
Guide Price
Brand: Cellecta
Model: 2mm
Delivery Time: 3 - 5 days
Cellecta Rubberfon Packers is a part of a lightweight and extremely accurate levelling system that enables contractors to get the floors to within the nearest millimetre. It is a simple way to achieve high levels of acoustic insulation to meet Part E in concrete floors, while providing acceptable to..
Guide Price: £65.27
£78.32 inc VAT
Brand: Cellecta
Model: 600mm x 1200mm - 18m2
Delivery Time: 3 - 5 days
Cellecta Fibrefon Micro Slab 15 is composed from a unique polyester fibre material, giving the slab substantial acoustic characteristics and performance, due to significant sound absorption. All these characteristics make them especially applicable to narrow spaces such as between joists in ceiling ..
Guide Price
Brand: Cellecta
Model: HD10 System
Delivery Time: 2 - 3 working days
YELOfon HD10+ is a complete system consisting of the following three key components. All components are supplied, no additional items are required. To comply with Robust detail E-FC-5 and achieve maximum soundproofing performance it is essential that all three components are installed.YELOfon HD10+ ..
Guide Price: £309.20
£371.04 inc VAT
Brand: Cellecta
Model: 5mm x 200mm - 33.33m
Delivery Time: 3 - 5 days
5mm Cellecta Rubberfon Edge Strip is a Perimeter Flanking Isolation, a composite polyethylene self-adhesive strip with Surebond facing perforations. It used with Screedboard 28 and 30.CHARACTRISTICSExcellent acoustic performance,Very quick and easy installation,Suits for 40-75mm thick screeds.APPLIC..
Brand: Cellecta
Model: 5mm x 15mm - 50m
Delivery Time: 3 - 5 days
5mm x 15mm Cellecta Yelofon ES5 Edge Strip is a Perimeter Flanking Isolation, a non cross linked, closed cell polyethylene strip to eliminate perimeter flanking transmission. For use with Screedboard 28 and 30.CHARACTRISTICSExcellent acoustic performance,Very quick and easy installation.APPLICATIONC..
Guide Price
Brand: Cellecta
Model: 1litre
Delivery Time: 3 - 5 days
Cellecta Fon Adhesive is a high strength acoustic adhesive specifically designed to bond DECKfon acoustic boards together at tongue & groove, for example, Screedboard 28. CHARACTERISTICS High strength adhesive Easy to apply No screws required Coverage: approximately 33m2 and is used in the interlock..
Guide Price: £19.80
£23.76 inc VAT
Brand: Cellecta
Model: 10mm x 100mm - 50m
Delivery Time: 3 - 5 days
10mm x 100mm Cellecta Yelofon ES10 Edge Strip is a Perimeter Flanking Isolation, a non cross linked, closed cell polyethylene strip to eliminate perimeter flanking transmission. For use with Screedboard 28 and 30.CHARACTRISTICSExcellent acoustic performance,Very quick and easy installation.APPLICATI..
Brand: Cellecta
Model: 75mm x 1200mm -
Delivery Time: 3 - 5 days
Cellecta Fibrefon Baffle Strip is an insulation strip designed to be used in conjunction with HiGYP 30TM acoustic wall boards. Together they will deliver excellent sound proofing properties in developments with timber floors and masonry walls. It has 15mm resilient layer bonded to 15mm recyclable wo..
Brand: Cellecta
Model: 15mm x 30mm - 2.0m
Delivery Time: 3 - 5 days
6mm x 15mm YELOfon FS15 Flanking Strip is a 2m long non cross linked, closed cell polyethylene strip to eliminate perimeter flanking transmission.The acoustic efficiency of the floor will be adversely affected should acoustic bridging between the floating layer and the surrounding structures occur (..
Brand: Cellecta
Model: 12kg
Delivery Time: 3 - 5 days
12kg Cellecta UL80 Adhesive is an acrylic polymer composite mixture to bond Rubberfon Ultratop and Deckfon Ultralay to concrete and screeded floors.CHARACTERISTICSExcellent adhesive properties, Easy to apply,Polymer composition,Coverage up to 80m2.APPLICATIONOn concrete and screeded floorsCERTIFICAT..
Brand: Cellecta
Model: 14kg
Delivery Time: 3 - 5 days
14kg Cellecta HB724 Floor Adhesive is an acrylic polymer composite mixture for bonding floor coverings to concrete and screeded floors and on all base floors.CHARACTERISTICSExcellent adhesive properties, Easy to apply,Polymer composition,1 hour high grab,24 hours full bond,Coverage up to 46m2.APPLIC..
Guide Price
Brand: Cellecta
Model: cradle
Delivery Time: 3 - 5 days
Cellecta Rubberfon Cradles is a lightweight and extremely accurate levelling system that enables contractors to get the floors to within the nearest millimetre. It is a simple way to achieve high levels of acoustic insulation to meet Part E in concrete floors, while providing acceptable tolerances. ..
Guide Price: £128.44
£154.13 inc VAT
Brand: Cellecta
Model: 600x1250mm - 0.75m2
Delivery Time: 2 - 4 days
50mm Cellecta Hexatherm XPOOL is a specially designed closed cell extruded polystyrene board, ideal for swimming pool bases and retaining walls, due to its high comprehensive strength, which allows it to withstand imposed long-term static load. Its extremely low water absorption allows it to be inst..
Brand: Cellecta
Model: 600x1250mm - 0.75m2
Delivery Time: 2 - 4 days
50mm Cellecta Hexatherm XROOF 300L is an extruded polystyrene thermal insulation board designed specically for inverted roof applications where a high resistance to compression and water absorption is essential. XROOF roof insulation boards are ideal for a multitude of roofing requirements, includin..
Brand: Cellecta
Model: 600x2400mm - 1.44m2
Delivery Time: 2 - 4 days
38mm Cellecta XCHiP is a high performance insulation board with a 18mm chipboard laminate facing. Cellecta XCHiP combines the benefits of HEXATHERM high performance thermal insulation with a P5 moisture resistant, tongue and groove chipboard to produce a high compressive strength, interlocking floor..
Brand: Cellecta
Model: 1200x2400mm - 2.88m2
Delivery Time: 2 - 4 days
26mm Cellecta Hexatherm XCPL is a high performance extruded polystyrene thermal insulation board bonded to an high impact thermal laminate facing, suitable for car parks and soffits. It combines the benefits of high performance extruded polystyrene with a facing board to produce a composite thermal ..
