Cellecta Yelofon HD 10+ System (combi pack)

  • Cellecta Yelofon HD 10+ System (combi pack)
  • Product Code: A10-750
  • Brand: Cellecta
    (tech. support: 01634 296 677)
  • Model and Size: HD10 System
  • Coverage: 49.50m2
  • Delivery Time: 3 - 5 days

  • Guide Price: £286.11 (£343.33 inc VAT)

    Guide price per m2: £5.78/m2 (£6.94/m2 inc VAT)

  • Price: £286.11 (£343.33 inc VAT)

    Price per m2: £5.78/m2 (£6.94/m2 inc VAT)


    • 5 or more £283.32 (£339.98 inc VAT)
    • 10 or more £281.58 (£337.90 inc VAT)
    • 20 or more £279.98 (£335.98 inc VAT)
= m2

Cellecta Yelofon HD 10+ System (combi pack)

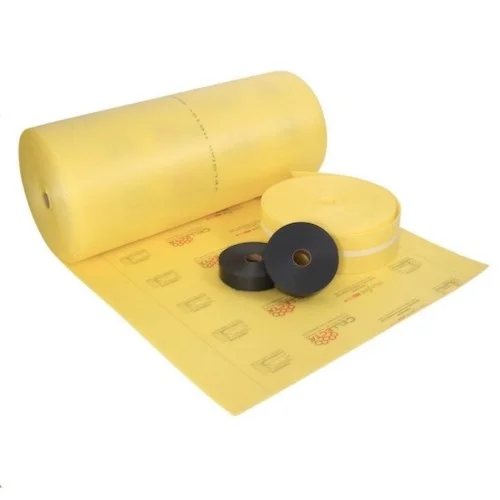

System components: 1 roll of YELOfon HD10+ (10mm x 1.5m x 33.33m), 1roll of YELOfon E-Strip (7mm x 200mm x 33m), 2 rolls of YELOfon J-strip (75mm x 33m)
Coverage: 49.5m2
Weight/m2: 1kg
Airbourne sound insulation: 57dB

YELOfon HD10+ is the ultimate acoustic resilient layer for underneath a floating screed and is one of the most iconic products in the Cellecta acoustic floor insulation range. The acclaimed high density, non cross-linked, HCFC free polyethylene resilient layer system carries its own proprietary Robust detail E-FC-5. YELOfon HD10+ is a lightweight, easy to install system that delivers unrivaled acoustic performance when used to isolate a floating screed from structural concrete floors.

YELOfon HD10+ is a complete system consisting of the following three key components. All components are supplied, no additional items are required. To comply with Robust detail E-FC-5 and achieve maximum soundproofing performance it is essential that all three components are installed.

  • YELOfon HD10+ rolls Installed directly on to the concrete floor,
  • YELOfon E-Strip Installed round the floor perimeter at the beginning of the installation to eliminate potential acoustic flanking,
  • YELOfon J-Strip Acoustic adhesive joining strip, used to combine sheets of YELOfon HD10+ and the surrounding E-strip. Eliminates risk of sound leakage.

When installed correctly the YELOfon HD10+ system provides a very high performance acoustic system for under screeded floors.

CHARACTERISTICS
  • High impact sound deadening properties
  • Easy to cut to size
  • Easy to handle and install
  • Suitable for all types of concrete floors and screeds
  • Compliant with Robust detail E-FC-5
  • Over 4,500,000m successfully installed
APPLICATION

Cellecta Yelofon HD 10+ System is applicable to all types of concrete floors and screeds, especially designed to insulate concrete separating floor from a floating screed.


CERTIFICATION
  • Robust detail compliant: Resilient layer for E-FC-5.
  • Values quoted are typical, based on the treatments being installed correctly and pre-completion tested.
  • Airborne performance tested in accordance with BS EN ISO 140-4:1998
  • Impact performance tested in accordance with BS EN ISO 140-7: 1998
