490m PVC Rail System Connector (pack of 25).
Guide Price
490m PVC Rail System Connector (pack of 25).
Guide Price: £16.38 (£19.66 inc VAT)
- Product Code: A1-2931
- Delivery Time: 1 - 2 days
- Brand: Wemico
- Model and Size: 3761
Our ratings on 11-07-2025:
4.8 out of 5
490m PVC Rail System Connector (pack of 25).
Length: 490mm
Pack Quantity: 25

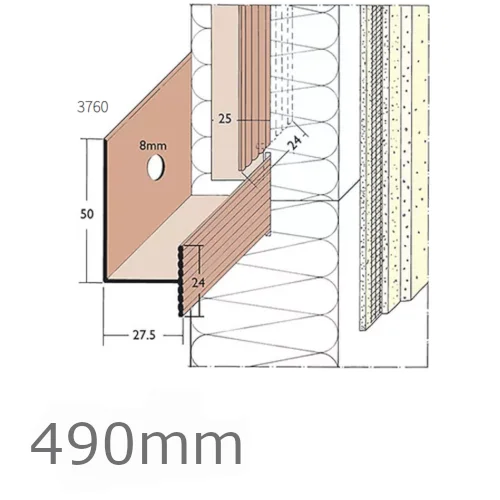

490m PVC Rail System Connector profile to be used in an External Thermal Insulation Systems with EPS. Can be used with other stiff insulation boards.
INSTALLATION
- Fix the starter track of the rail system to the wall with dowel screws to the substrate.
- Dowels should be installed at a max. spacing of 30 cm.
- Apply an adhesive dab on the insulation board to cover at least 20% of the surface.
- The insulation board must have a groove for the rail track to go in (as shown in the above photo).
- Push the insulation board into the rail starter track and press it firmly to the wall.
- Align the boards horizontally and vertically.
- Push in the Wemico Rail System Connector vertically.
- Push the intermediate rail system track into the installed boards horizontally.
- Fix the intermediate track with dowel screws.
- Continue to install insulation boards upwards.
