490m PVC Rail System Connector (pack of 25).

490m PVC Rail System Connector (pack of 25).
Guide Price
Rate this product
490m PVC Rail System Connector (pack of 25).
Guide Price: £17.04 (£20.45 inc VAT)
  • Product Code: A1-2931
  • Delivery Time: 1 - 2 days
  • Brand: Wemico (Tech. support: 01562820123)
  • Model: 3761
Our ratings on 21-10-2026:
Google My Business Reviews
4.8 out of 5
Ask question about this product. For price use 'Add to Quote' button.
To GET BEST PRICE for this product only fill below:
Send for Quotation
Need a quote for more products? and continue browsing to find other materials needed.

490m PVC Rail System Connector (pack of 25).

Length: 490mm
Pack Quantity: 25

490m PVC Rail System Connector profile to be used in an External Thermal Insulation Systems with EPS. Can be used with other stiff insulation boards.

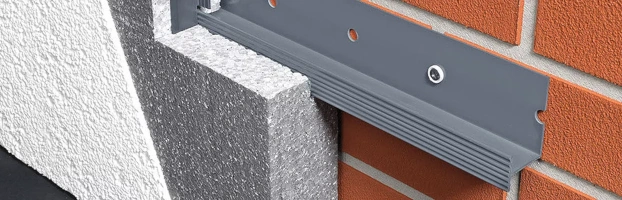

wemico rail system


INSTALLATION

  • Fix the starter track of the rail system to the wall with dowel screws to the substrate.
  • Dowels should be installed at a max. spacing of 30 cm.
  • Apply an adhesive dab on the insulation board to cover at least 20% of the surface.
  • The insulation board must have a groove for the rail track to go in (as shown in the above photo).
  • Push the insulation board into the rail starter track and press it firmly to the wall.
  • Align the boards horizontally and vertically.
  • Push in the Wemico Rail System Connector vertically.
  • Push the intermediate rail system track into the installed boards horizontally.
  • Fix the intermediate track with dowel screws.
  • Continue to install insulation boards upwards.
