British Gypsum Gypframe 146 TI 90 I Stud 6 m (pack of 10)




British Gypsum Gypframe 146 TI 90 I Stud 6 m (pack of 10)
Price: £719.25 (£863.10 inc VAT)
5 or more £707.45 (£848.94 inc VAT)
10 or more £695.67 (£834.80 inc VAT)
20 or more £677.97 (£813.56 inc VAT)
- Product Code: A1-816
- Delivery Time: 3 - 5 days
- Brand: British Gypsum (Tech. support: 01159456123)
- Model and Size: 146 TI 90 'I' Stud - 6 m
- Weight: 5.64kg
Our ratings on 22-05-2025:

4.8 out of 5

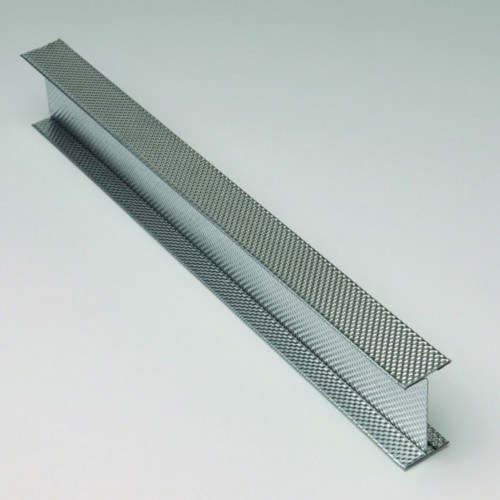

British Gypsum Gypframe 146 TI 90 'I' Stud 6 m (pack of 10)
Width: 146mm
Length: 6000mm
Weight: 5.64kg
The studs are usually combined with ShaftWall which is a lightweight system which can be installed in the early construction phase, especially applicable to areas with limited access, providing a fire-protective structure for the inner elements. It is designed to meet air pressure and deflection requirements, but also the boundary requirements prescribed by the applicable Approved Document B of the Building Regulations. The system can be found in stairwells, service ducts and risers and lift shafts, providing a protective enclosure.
APPLICATION
Gypframe 146 TI 90 6 m 'I' studs are particularly applicable in systems with paramount board fixing strength.
CERTIFICATION
The product is in compliance with the:
- British Standard BS 7364
- European Standard EN 14195
- American Standard ASTM C645
