75mm Xtratherm Thin-R Hyfloor XT/HYF Under Floor PIR Insulation Board - Pack of 4

  • 75mm Xtratherm Thin-R Hyfloor XT/HYF Under Floor PIR Insulation Board - Pack of 4
  • Product Code: A1-1752
  • Brand: Xtratherm
    (tech. support: 0371 222 1055)
  • Model and Size: 1200x2400mm - 11.52m2
  • Pack coverage: 11.52m2
  • Delivery Time: 1 - 2 days
  • Due to nationwide shortage of PIR insulation lead time may be longer for this product.

= m2
other thicknesses

= m2

= m2

= m2

75mm Xtratherm Thin-R Hyfloor XT/HYF Under Floor PIR Insulation Board - Pack of 4

Thickness: 75mm
Width: 1200mm
Length: 2400mm
Pack coverage: 11.52m2
Density: 30kg/m3
Weight/m2: 2.25kg
Weight: 25.92kg
Thermal Conductivity: 0.022W/mK
R-Value: 3.41m2K/W
Compressive Strength: 140kPa
Surface Spread of Flame: Class 1

75mm Xtratherm Thin-R Hyfloor XT/HYF is a high performance floor Insulation board with superior thickness to performance ratio allowing the lower targets required under the new Building Regulations to be achieved with minimum thicknesses. Xtratherm Thin-R Hyfloor XT/HYF is a high performance foil faced Polyisocyanurate (PIR) insulation with a certified thermal conductivity as low as 0.022W/mK. Manufactured to strict EN 13165 standards, the closed cell structure and gas tight facings provides excellent thermal performance and moisture resistance. It has an engineered jointing to provide improved continuity and unparalleled thermal bridging performance.

CHARACTERISTICS
  • High Thermal Performance,
  • Easy to Install,
  • T&G jointing on all four edges,
  • Suitable for new build and refurbishment,
  • Achieves Zero Carbon Standards,
  • Reduces Thermal Bridging,
  • Certified Lambda Value as low as 0.022 W/mK,
  • Closed cell structure moisture resistant
APPLICATION

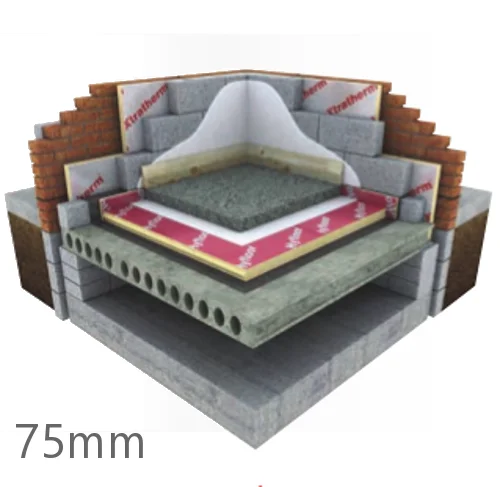

Suitable for new build and refurbishment. Above floor slabs and below floor screed.

INSTALLATION

Xtratherm Thin-R Hyfloor XT/HYF boards should be stored off  the ground, on a clean, flat surface and must be stored under cover. The polythene wrapping is not considered adequate protection for outside exposure.

Below Floor Slab
  • Lay the hardcore in layers (150mm to  225mm). Each layer should be well compacted, with the surface blinded with quarry dust or sand to provide suitable surface for laying DPM.
  • A damp proof membrane e.g. 1200 gauge polythene or radon barrier should be laid over blinding with joints taped to prevent passage  of ground moisture, it should be carried up the wall until it meets and seals with the DPC.
  • Hyfloor should be laid with closely butted T&G joints, laid staggered with a break bonded pattern and fitted tightly at edges and around any service penetrations.
  • Place a layer of polythene over any under floor insulation to act as a separating layer.
Below Floor Screed
  • Ensure that the floor slab or beams onto which the insulation is being laid is level, a blinding of sand may be required.
  • The concrete floor over which the insulation  is to be laid should be left as long as possible to maximise drying out, in accordance with BS8203: 1996 Section 3.1.2.
  • The minimum thickness of sand and cement screed is 65mm for domestic construction and 75mm for most other buildings.
CERTIFICATION

Xtratherm Thin-R Hyfloor XT/HYF is manufactured under ISO 14001:2004 Environmental Management with all major components sourced under 14001 accredited suppliers. It is manufactured without the use of CFCs or HCFCs and has Zero Ozone Depletion Potential with a GWP of less than 5. Thin-R has been awarded an A+ Rating under the BRE Green Guide.

Xtratherm Thin-R Hyfloor XT/HYF is manufactured to EN ISO 13165 under Quality Systems approved to EN ISO 9001:2008 Quality Management, EN ISO 14001:2004 Environmental Management and BS OHSAS 18001 Health and Safety Management System.
