Thinsulex TLX Gold Multifoil Insulation

  • Thinsulex TLX Gold Multifoil Insulation
  • Product Code: A1-1341
  • Brand: TLX Insulation
    (tech. support: 01582 450 814)
  • Model and Size: 1.2m x 10m - 12m2
  • Roll Coverage: 12.00m2
  • Delivery Time: 2 - 3 days

  • Guide Price: £182.85 (£219.42 inc VAT)

    Guide price per m2: £15.24/m2 (£18.29/m2 inc VAT)

  • Price: £182.85 (£219.42 inc VAT)

    Price per m2: £15.24/m2 (£18.29/m2 inc VAT)


    • 5 or more £181.17 (£217.40 inc VAT)
    • 10 or more £178.75 (£214.50 inc VAT)
    • 15 or more £176.00 (£211.20 inc VAT)
= m2

Thinsulex TLX Gold Multifoil Insulation

Thickness: 33mm
Width: 1200mm
Roll Length: 10m
Roll coverage: 12m2
Weight/m2: 0.9kg
Weight: 10.8kg
R-Value: 0.95m2K/W
Fire Rating (Reaction to Fire): E

TLX Gold Thinsulex Multifoil Insulation is a 2 in 1 insulating breather membrane, venting moisture like a breather membrane, whilst insulating like non-breathable PIR board. The key benefit of the product is to improve the thermal performance of a roof without concern of condensation or having to adjust the height of the roof itself.

TLX Gold Thinsulex Mutifoil Insulation responds to changes in the environment, i.e. when humidity increases, the vapour permeability of the product increases and similarly, when humidity goes down, the vapour permeability of TLX Gold goes down, hence condensation risk is eliminated, even with no vapour barrier.

TLX Gold Thinsulex Multifoil Insulation is lightweight, quick and easy to fit, comes with European technical approval and is endorsed by LABC and in many cases, removal of existing insulation isnt necessary. TLX gold can be used in historic buildings and public buildings, re-roofing social and private housing, barn coversions, new builds and extensions.

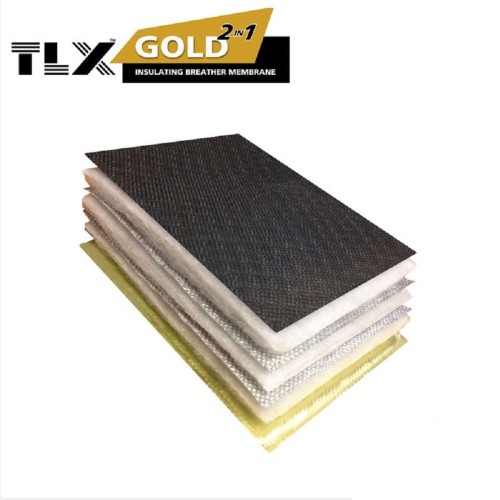

TLX Gold is an insulation material comprising outer layers of coated metallised film, laminated to a nonwoven polypropylene fabric enclosing the core and welded along both long edges. The core of the products consists of five layers of polyester fibre wadding separated by four metallised film layers. It works in combination with glass wool to reduce the total thickness of insulation needed and with rigid insulation to cut installation time. BBA approved, It stops air leakage by providing an air-tight vapour barrier and restricting air movement in its multi-foil layers.

APPLICATION
TLX Gold Thinsulex Mutifoil Insulation can be used for 100mm and 150mm rafter installations in:
  • new build
  • barn conversion
  • loft extensions (new build in a traditional roof) either over or under rafters
  • refurbishment projects
CHARACTERISTICS
  • Sd intelligent - the more moisture the more TLX Gold breathes
  • Upgrades existing insulation
  • Replaces roof underlay
  • Comes with integrated tape
  • Air barrier
  • Allows water vapour to pass through
  • Controls heat loss through management of convection, conduction and radiation
  • Requires minimal space
  • Easy and quick to install
  • Light weight
  • Clean and easy to use, no protective clothing required.
CERTIFICATION
  • TLX Gold Thinsulex Mutifoil Insulation is BBA certified
  • Endorsed as a LABC Registered System status and accepted by NHBC
  • ETA approved
  • The product has zero global warming and ozone depletion potential
