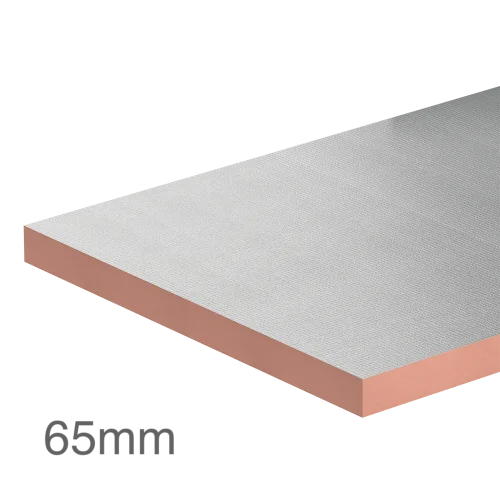

65mm Kingspan Kooltherm K110 Soffit Insulation Board (pack of 4)

  • 65mm Kingspan Kooltherm K110 Soffit Insulation Board (pack of 4)
  • Product Code: A1-2086
  • Brand: Kingspan
    (tech. support: 01544 388 601)
  • Model and Size: 2400x1200mm - 11.52m2
  • Pack Coverage: 11.52m2
  • Delivery Time: 7 - 10 days

  • Price: £339.39 (£407.27 inc VAT)

    Price per m2: £29.46/m2 (£35.35/m2 inc VAT)


    • 2 or more £309.65 (£371.58 inc VAT)
    • 3 or more £307.13 (£368.56 inc VAT)
    • 4 or more £301.97 (£362.36 inc VAT)
= m2
other thicknesses
Price: £355.04 (£426.05 inc VAT)
show quantity discounts
= m2
Price: £296.95 (£356.34 inc VAT)
show quantity discounts
= m2

65mm Kingspan Kooltherm K110 Soffit Insulation Board (pack of 4)

Thickness: 65mm
Width: 1200mm
Length: 2400mm
Pack Quantity: 4
Pack Coverage: 11.52m2
Density: 40kg/m3
Weight/m2: 2.6kg
Weight: 29.95kg
Thermal Conductivity: 0.018W/mK
R-Value: 3.6m2K/W
Compressive Strength: 100kPa
Water vapour resistivity: 41.6MN.s/g.m
Fire Rating (Reaction to Fire): C(Class 1)

65mm Kingspan Kooltherm K110 Soffit Board is a premium performance lower lambda insulation with a fibre-free rigid thermoset phenolic core, a 6mm glass tissue based facing on its front surface and low emissivity composite foil on its reverse surface. Manufactured with a blowing agent that has zero Ozone Depletion Potential (ODP) and low Global Warming Potential (GWP).

CHARACTERISTICS
  • Safe and easy to handle and install,
  • Water vapour resistant,
  • Fire rated - Euroclass: C-s1,d0,
  • Non-deleterious,
  • Very durable, depending on the structure and conditions of use,
  • Unaffected by air filtration,
  • High performance thermoset rigid insulation,
  • Applicable in both new build and refurbishment projects,
  • Environmentally friendly, with 0 ODP and low GWP.

APPLICATION
Kingspan Kooltherm K110 Soffit Board is used for structural ceilings, including:
  • concrete soffits;
  • timber battens and
  • proprietary grid systems.

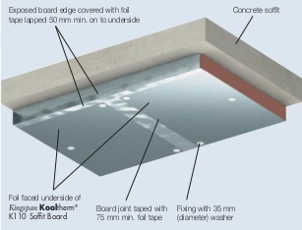

INSTALLATION
  • Insulation boards should be installed with joints lightly butted.
  • The number of mechanical fixings required will vary with the geographical location of the building, the local topography, the height and width of the soffit concerned, and the soffit construction.
  • A minimum of 11 mechanical fixings, with a minimum head diameter of 35 mm, are required to secure the insulation board to the soffit.
  • Where the insulation boards may be subject to external wind pressure, the requirement for additional fixings should be assessed in accordance with BS/I.S. EN 199114: 2005 (National Annex to Eurocode 1 Actions on Structures. General Actions. Wind Actions).
  • The fixings should be evenly distributed over the whole area of the board, and must offer a minimum 40 mm penetration into a solid substrate.
  • Fixings at board edges must be located > 50 mm and < 150 mm from edges and corners of the board and not overlap board joints.
  • Depending upon the fixing type, insulation boards can also be fitted by a shot fired fixing method, which can result in significantly faster installation times.

CERTIFICATION

  • ISO 9001: 2015 (Quality Management Systems. Requirements),
  • ISO 14001: 2015 (Environmental Management Systems. Requirements),
  • BS/I.S. OHSAS 18001: 2007 (Occupational Health & Safety Management Systems. Requirements)
  • ISO 50001: 2011 (Energy Management Systems. Requirements with guidance for use).
