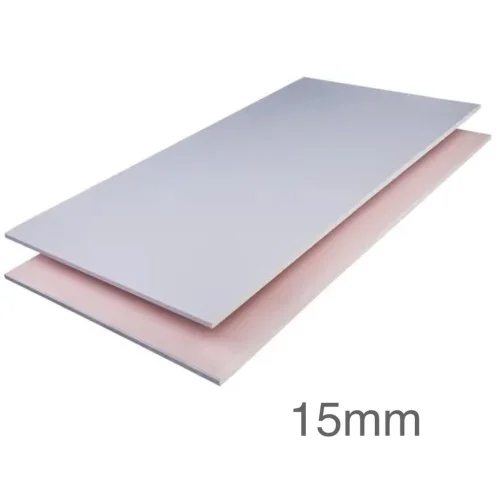

15mm Gyproc SoundBloc F High Density Acoustic Board 1200x2400mm

  • 15mm Gyproc SoundBloc F High Density Acoustic Board 1200x2400mm
  • Product Code: A1-1878
  • Brand: British Gypsum
    (tech. support: 0115 945 6123)
  • Model and Size: 1200x2400mm - 2.88m2
  • Board coverage: 2.88m2
  • Delivery Time: 1 - 2 days

  • Guide Price: £14.47 (£17.36 inc VAT)

    Guide price per m2: £5.02/m2 (£6.02/m2 inc VAT)

  • Price: £14.47 (£17.36 inc VAT)

    Price per m2: £5.02/m2 (£6.02/m2 inc VAT)

= m2
other thicknesses
Guide Price: £16.49 (£19.79 inc VAT)
= m2
Guide Price: £18.32 (£21.98 inc VAT)
= m2

15mm Gyproc SoundBloc F High Density Acoustic Board 1200x2400mm

Thickness: 15mm
Width: 1200mm
Length: 2400mm
Board coverage: 2.88m2
Density: 940kg/m3
Weight/m2: 14.1kg
Weight: 40.6kg
Fire Rating (Reaction to Fire): A2(Limited combustibility)
Surface Spread of Flame: Class 1

15mm Gyproc SoundBloc F consists of an aerated gypsum core with glass fibre, water repellent and other additives encased in, and firmly bonded to strong paper liners. This board is specially designed for use in heavy use areas where greater levels of sound insulation and increased fire protection are required. Its front face is encased in pale blue paper and the reverse side in pink paper. Available in tapered edge only.

CHARACTERISTICS
  • Non-combustible,
  • Superior acoustic performance,
  • High moisture resistance,
  • High density,
  • Easy to handle and work with,
  • Has a face to which suitable gypsum plasters or decoration may be applied.
APPLICATION
  • Wall linings,
  • Partitions,
  • Heavy use areas,
  • Office meeting rooms,
  • School classrooms,
  • Hospital side rooms.
INSTALLATION
  • Gyproc SoundBloc F may be cut using a plasterboard saw or by scoring with a sharp knife and snapping the board over a straight edge.
  • Holes for switch or socket boxes should be cut out before the boards are fixed using a utility saw or sharp knife.
  • Fix boards with decorative side out to receive joint treatment or a skim plaster finish. Lightly butt boards together. Never force boards into position. Install fixings not closer than 13mm from cut edges and 10mm from bound edges.
  • Position cut edges to internal angles whenever possible, removing paper burrs with fine sandpaper.
  • Stagger horizontal and vertical board joints between layers by a minimum of 600mm.
  • Locate boards to the centre line of framing where this supports board edges or ends.
  • The face (blue side) can be plastered with either Thistle Board Finish ;Thistle Multi-Finish or Thistle DuraFinish .
  • There should be the minimum of delay between completion of the lining and the commencing of plastering.
CERTIFICATION
  • BS 476: Part 6: 1989 Method of test for fire propagation for products,
  • BS 476: Part 7: 1997 Surface spread of flame tests for materials,
  • EN 520: 2004. Gypsum Plasterboards, definitions, requirements and test methods
