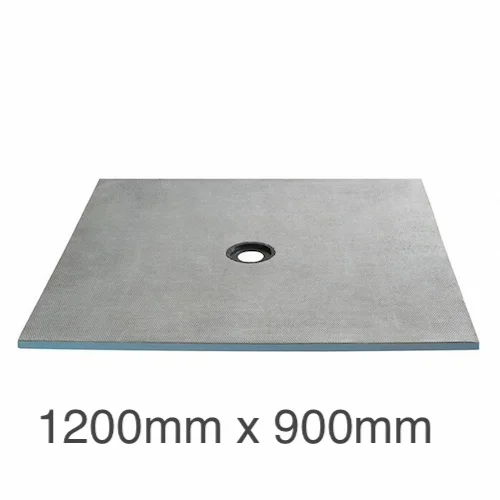

Marmox Showerlay 360 - Centre Draining Shower Tray - 20mm x 1200mm x 900mm

20mm x 1200mm x 900mm Marmox Showerlay 360 is a centre draining shower tray designed for use in tiled bathrooms and walk in showers. It is made of high density polystyrene coated on both sides with a unique blend of reinforced polymer concrete. They pre-sloped flooring panels with integral drainage used to create level access tiled shower areas. The Marmox Showerlay 360 trays can be installed onto concrete or timber floors using a suitable tile adhesive. Low access bathroom shower trays are particularly beneficial for people with disabilities or for whom climbing into a raised shower may be difficult. Use Marmox Self-Adhesive Waterproof Tape around the edges and the corner of the wall to create a waterproof seal. Includes 360 waste.

CHARACTERISTICS

• Made of high density polystyrene coated on both sides with a unique blend of reinforced polymer concrete,
• Completely waterproof,
• Thermally insulating,
• Lightweight & easy to work with,
• Easy to cut to size with a standard working knife,
• Acts as a decoupling layer,
• Can be tiled directly onto,
• Can be tiled with mosaic tiles without the risk of compression,
• Includes 360 waste.

The gully can be adjusted to make the outlet pipe horizontal, vertical or any angle in between. Depending on the angle of the outlet pipe, the flow rate is 30 to 50 litres per minute.

INSTALLATION
