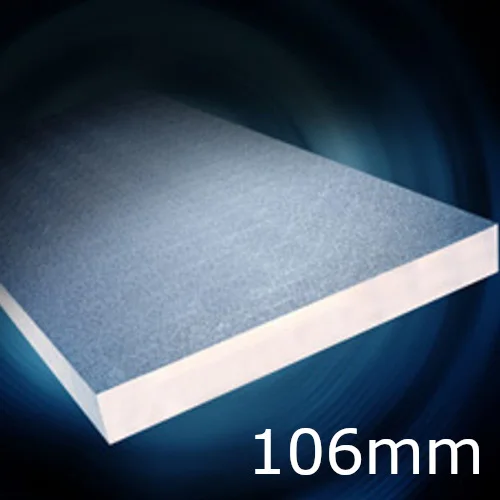

106mm Unilin Xtroliner XO/STP PIR Soffit Plus Board - (100mm PIR Board and 6mm Building Panel)

106mm Unilin Xtroliner XO/STP PIR Soffit Plus Board - (100mm PIR Board and 6mm Building Panel)
106mm Unilin Xtroliner XO/STP PIR Soffit Plus Board - (100mm PIR Board and 6mm Building Panel)
106mm Unilin Xtroliner XO/STP PIR Soffit Plus Board - (100mm PIR Board and 6mm Building Panel)
106mm Unilin Xtroliner XO/STP PIR Soffit Plus Board - (100mm PIR Board and 6mm Building Panel)
106mm Unilin Xtroliner XO/STP PIR Soffit Plus Board - (100mm PIR Board and 6mm Building Panel)
  • Product Code: A1-5033
  • Delivery Time: 2 - 3 working days
  • Brand: Unilin (prev. Xtratherm)
  • Model and Size: 2400x1200mm - 2.88m2
Our ratings on 11-09-2025:
Google My Business Reviews
4.8 out of 5
Show other thicknesses

106mm Unilin XtroLiner XO/STP PIR Soffit Plus Board - (100mm PIR Board + 6mm Building Panel)

Length: 2400mm
Width: 1200mm
Thickness: 106mm
Board Coverage: 2.88m2
Thermal Conductivity: 0.021W/mK
R-Value: 4.75m2K/W
Compressive Strength: 120kPa
Fire Rating (Reaction to Fire): B(Class 0)

106mm Unilin Xtroliner XO/STP PIR Soffit Plus Board (100mm PIR + 6mm Building Panel) is a superior performance ceiling insulation board with enhanced fire performance, consisting of an Euroclass B s1 d0 PIR foam core with negligible smoke obscuration. Unilin Xtroliner XO/STP PIR core is faced with low emissivity aluminium facings,  bonded to an impact-resistant 6mm building panel.

APPLICATION
  • Designed to use for ceiling insulation

CHARACTERISTICS
  • Superior performance modified PIR foam,
  • Provides the most efficient U-values with minimal thickness,
  • Effective thermal and fire performance,
  • Low smoke obscuration,
  • Low risk fire rating - Euroclass B s1 d0,
  • For new build or refurbishment,
  • Rot proof and will remain effective for the life span of the building,
  • Can be readily cut using a sharp knife or fine toothed saw.
CERTIFICATION
