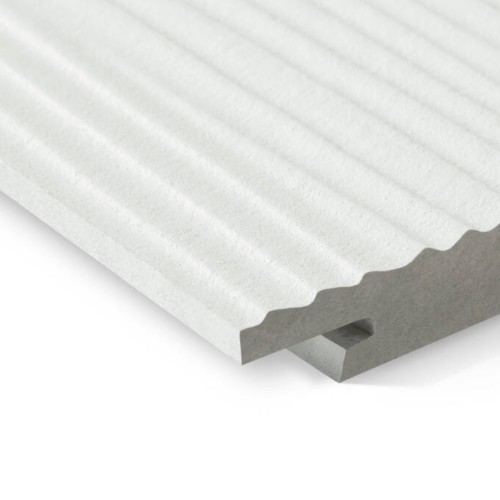

11mm Swisspearl Plank Connect Panel - CP 210 Pure White Textured Cladding Panel - 210mm x 3000mm

11mm Swisspearl Plank Connect Panel - CP 210 Pure White Textured is a contemporary facade cladding system designed as a high-performance, low-maintenance alternative to traditional timber weatherboarding. Crafted from durable fibre cement, these planks combine the authentic aesthetic of natural wood with the superior strength and longevity of a modern, engineered material. A key feature of the Plank Connect system is its innovative tongue-and-groove profile, which facilitates a quick, secure, and concealed installation. This unique connection method creates a seamless, clean-lined facade without visible fixings, contributing to a sleek and modern architectural finish. The system also includes specialised stainless steel clips for a robust and hidden attachment to the substructure, which can be either a timber or metal frame. Available in a range of textured, wood-like finishes and contemporary colours, Swisspearl Plank Connect is designed for both horizontal and vertical installation. It is an ideal solution for new-build projects, as well as for the renovation of existing properties, offering exceptional resistance to fire, rot, mould, and fungi. Its inherent durability ensures the facade will maintain its appearance for decades with minimal upkeep, providing a long-lasting and aesthetically pleasing building envelope.

Visible Area per Plank: 193mm (visible width) x 3000mm (length) = 0.58 m²

CHARACTERISTICS

• Made from high-quality, durable fibre cement, a composite material of cement, water, minerals, and fibres.
• Designed to mimic the natural look and feel of timber weatherboarding, available in a range of wood-like textures and contemporary colours.
• Features an innovative tongue-and-groove profile that allows for a fast, simple, and concealed "one-click" installation.
• Utilises specialised stainless steel clips for a hidden, secure attachment to the substructure, eliminating the need for visible screws or fixings.
• Inherently resistant to a wide range of elements, including fire, rot, mould, fungi, frost, and insects. It will not warp, crack, or discolour over time.
• Requires very low maintenance, as the highly resistant surface finish does not need repainting for decades.
• Can be installed both horizontally and vertically, allowing for flexible design possibilities.
• Classified as a non-combustible material (A2-s1, d0), providing a high level of fire safety for buildings.
• Designed as part of a rear-ventilated facade system, which helps to drain moisture and improve energy efficiency.


APPLICATION

• It is a popular choice for new construction projects, where it provides a contemporary, low-maintenance, and fire-resistant building envelope.
• It is an excellent option for renovating existing properties, as it can be installed over an existing facade, often allowing for the integration of an additional layer of insulation to improve a building's energy efficiency.

INSTALLATION

• Substructure:
  • The planks are installed onto a timber or metal substructure (battens).
  • The specific installation method depends on whether the planks are being fitted horizontally or vertically.
• Rear-Ventilated Facade:
  • It is crucial to install Swisspearl Plank Connect as part of a rear-ventilated facade system.
  • There must be a minimum distance (typically around 20mm) between the cladding and the sheathing or blockwork behind it.
  • This cavity allows for air circulation, which helps to prevent moisture buildup and condensation, thereby protecting the building's structure.
• Accessories: The installation requires the use of a complete system of accessories, including:
  • Stainless steel clips: These are an integral part of the "one-click" system, providing a secure, concealed fixing.
  • Ventilation profiles: These are installed at the bottom and top of the facade to ensure a continuous airflow through the ventilated cavity.

  • Corner and trim profiles: These are used to provide a neat and weatherproof finish around corners, windows, and doors.

CERTIFICATIONS

Complies with:

• EN 12467:2012+A2:2018 Fibre-cement flat sheets
• EN 13501-1:2007+A1:2009 Fire classification of construction products and building elements. Classification A2-s1, d0
