2.5m PVC Rail System Support Track (pack of 25).
Guide Price
2.5m PVC Rail System Support Track (pack of 25).
Guide Price: £89.27 (£107.12 inc VAT)
- Product Code: A1-2930
- Delivery Time: 1 - 2 days
- Brand: Wemico
- Model and Size: 3760
Our ratings on 17-09-2025:
4.8 out of 5
2.5m PVC Rail System Support Track (pack of 25).
Length: 2500mm
Pack Quantity: 25

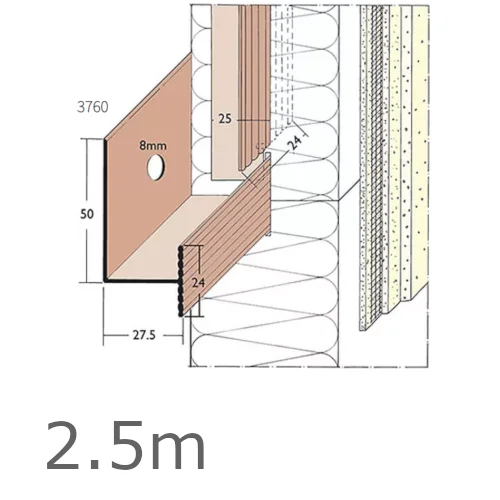

2.5m PVC Rail System Support Track profile to be used in an External Thermal Insulation Systems with EPS. Can be used with other stiff insulation boards.
INSTALLATION
- Fix the starter track of the rail system to the wall with dowel screws to the substrate.
- Dowels should be installed at a max. spacing of 30 cm.
- Apply an adhesive dab on the insulation board to cover at least 20% of the surface.
- The insulation board must have a groove for the rail track to go in (as shown in the above photo).
- Push the insulation board into the rail starter track and press it firmly to the wall.
- Align the boards horizontally and vertically.
- Push in the Wemico Rail System Connector vertically.
- Push the intermediate rail system track into the installed boards horizontally.
- Fix the intermediate track with dowel screws.
- Continue to install insulation boards upwards.
Guide Price
Brand: Wemico
Model and Size: WE64N
Delivery Time: 1 - 2 days
40mm Perforated Full System Base Bead Profile made from powder coated galvanised steel with PVC nosing which will provide additional protection against abrasion and corrosion. This product can also be used as a window/door head profile. External and Internal Corners and additional sizes made to orde..
Guide Price: £13.42
£16.10 inc VAT
Brand: Wemico
Model and Size: 9440
Delivery Time: 1 - 2 days
Aluminium Facade Corner Profile Without Covered Cutting Edges - Profile 9440 length of 3m. Corner profiles cover the cutting edges of the facade boards and form a clean, precise edge. Vertical corner profiles must be fastened at one fixed point at the top. If conditions require multiple fastening po..
Brand: Wemico
Model and Size: 90608
Delivery Time: 1 - 2 days
A box shaped base profile for 80mm thermal insulation board - also available in Stainless Steel. Larger sizes can be made to order. Connectors and render clips are also available to suit this product...
£9.02
£10.82 inc VAT
Guide Price
Brand: Wemico
Model and Size: 90917ST
Delivery Time: 1 - 2 days
170mm box shaped Aluminium Vented base profile for external thermal insulation board, created to match the new regulations that demand different air flow rates within cavities of steel frame and timber frame structures. Connectors and render clips are also available to suit this product.Note: Please..
Guide Price: £18.89
£22.67 inc VAT
Guide Price
Brand: Wemico
Model and Size: 2141
Delivery Time: 1 - 2 days
15mm Stainless Steel Full System Horizontal Joint Angle profile to be used where a movement space designed for the structural stability of the external Thermal Insulation Systems. Mounted under the starter track. Render depth is 15mm...
Guide Price: £263.62
£316.34 inc VAT
Brand: Wemico
Model and Size: 37526
Delivery Time: 1 - 2 days
14mm PVC Corner profile with an extended arris and 100x150mm alkali resistant glass fibre mesh wings, which allows it to be cut to the required length and reduces waste. 2.5m length...
£158.57
£190.28 inc VAT
