28mm CMSDanskin Smartspan 28 Self-supporting Floor Panel - 1200mm x 600mm
28mm CMSDanskin Smartspan 28 Self-supporting Floor Panel - 1200mm x 600mm
- Product Code: A1-5520
- Delivery Time: 2 - 3 working days
- Brand: CMS Danskin Acoustics (Tech. support: : 01925577711)
- Model and Size: 1200mm x 600mm - 0.72m2
- Weight: 32.00kg
Our ratings on 16-10-2025:
4.8 out of 5
28mm CMSDanskin Smartspan 28 Self-supporting Floor Panel - 1200mm x 600mm
Length: 1200mm
Width: 600mm
Height: 28mm
Board Coverage: 0.72m2
Density: 1600kg/m3
Weight/m2: 45kg
Weight: 32kg

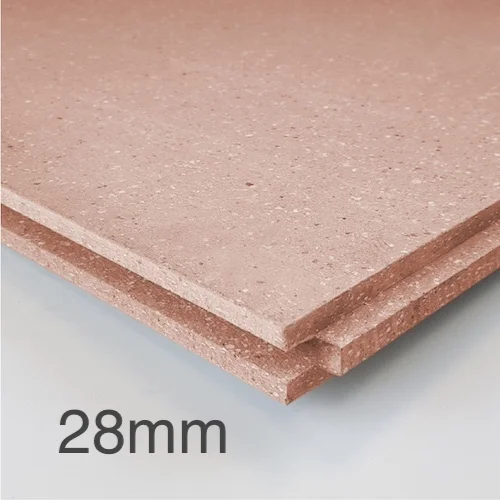

28mm CMSDanskin Smartspan 28 is a self-supporting floor panel that can be used where high loads are expected on floating floors creating a monolithic floor. The CMSDanskin Smartspan panels can be placed across bearing structures such as joists, pedestals and batten systems. These panels have excellent thermal conductivity and suitable for all finishes including stone and ceramics. The CMSDanskin Smartspan panels are ideal for underfloor heating systems. Once the tongues and grooves are glued with a joint adhesive, the floor becomes monolithic. They can be used either as a floating floor or a spanning floor.
CHARACTERISTICS
- Easy to install,
- High acoustic performance,
- High loading capacity,
- Suitable for all finishes as floating floor,
- Low deflection under load,
- For low deflection under load, max 600mm centres as spanning floor,
- Can accept direct bonded ceramic finish,
- Can take light traffic after 4 hours. Fully loaded after 24 hours as a floating floor,
- Can accept direct bonded ceramic finish subject to thickness and module limitations as a spanning floor.
APPLICATION
- As a floating floor,
- As a spanning floor,
- Where underfloor heating is installed.
