30mm Kingspan Thermataper TT46 Board - Tapered PIR Insulation - 1200mm x 1200mm

30mm Kingspan Thermataper TT46 Board - Tapered PIR Insulation - 1200mm x 1200mm
30mm Kingspan Thermataper TT46 Board - Tapered PIR Insulation - 1200mm x 1200mm
30mm Kingspan Thermataper TT46 Board - Tapered PIR Insulation - 1200mm x 1200mm
30mm Kingspan Thermataper TT46 Board - Tapered PIR Insulation - 1200mm x 1200mm
30mm Kingspan Thermataper TT46 Board - Tapered PIR Insulation - 1200mm x 1200mm
30mm Kingspan Thermataper TT46 Board - Tapered PIR Insulation - 1200mm x 1200mm
30mm Kingspan Thermataper TT46 Board - Tapered PIR Insulation - 1200mm x 1200mm
  • Product Code: A1-5720
  • Delivery Time: 3 - 4 days
  • Brand: Kingspan
  • (Tech. support: 01544388601)
  • Model and Size: 1200mm x 1200mm - 1.44m2
Our ratings on 09-10-2025:
Google My Business Reviews
4.8 out of 5
Show other thicknesses

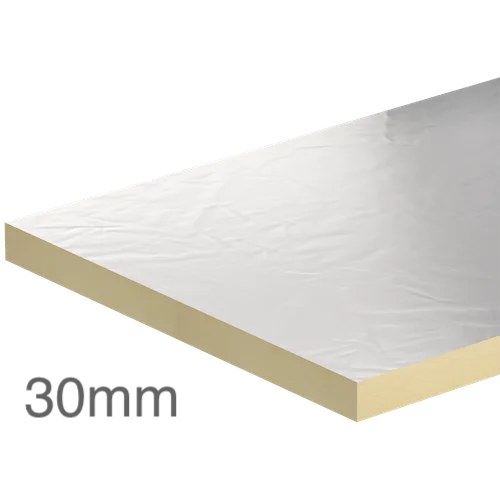

30mm Kingspan Thermataper TT46 Board - Tapered PIR Insulation - 1200mm x 1200mm

Length: 1200mm
Width: 1200mm
Thickness: 30mm
Board Coverage: 1.44m2
Pack Coverage: 1.44m2
Thermal Conductivity: 0.022W/mK
R-Value: 1.35m2K/W
Compressive Strength: 150kPa

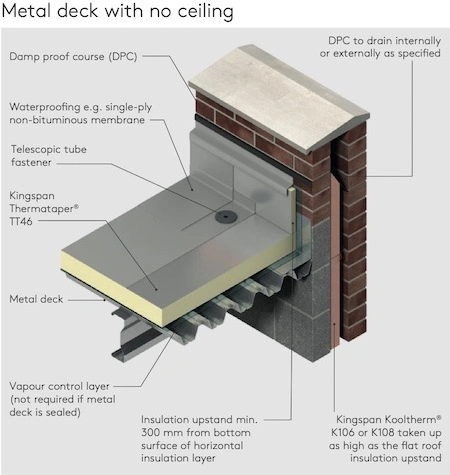

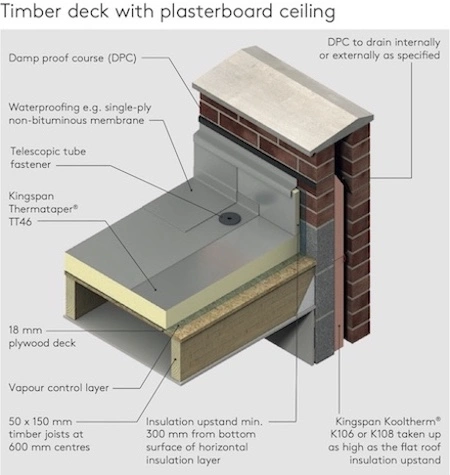

30mm Kingspan Thermataper TT46 Board is a high-performance tapered PIR insulation board designed for flat roofs with mechanically fixed single-ply waterproofing. Thermataper TT46 is commonly used for flat roofs with mechanically fixed single-ply waterproofing. It offers effective thermal insulation, efficient drainage, and high compressive strength. The tapered design ensures efficient water runoff, preventing ponding on flat roofs. Proper drainage helps maintain the roof’s structural integrity and prevents water-related damage. Thermataper TT46 is faced on both sides with a low emissivity composite foil, autohesively bonded to the insulation core during manufacture. 30mm board is designed for systems with a 1:60 & 1:80 fall.



APPLICATION

  • For flat roofs with a 1:60 & 1:80 fall

CHARACTERISTICS

  • Insulation and drainage in one,
  • Faced on both sides with a low emissivity composite foil,
  • Fully compatible with most mechanically fixed single-ply waterproofing systems,
  • Provides a practical alternative to screeding, structural falls,
  • Resistant to the passage of water vapour,
  • Lightweight,
  • Easy to handle and install,
  • Ideal for new build and refurbishment,
  • Non-deleterious material,
  • Manufactured with a blowing agent that has zero ODP and low GWP.

CERTIFICATION

Manufactured in accordance with the requirements of

  • BS EN 13165: 2012 + A2: 2016;
  • ISO 9001: 2015,
  • ISO 14001: 2015,
  • ISO 45001: 2018,
  • ISO 50001: 2018,
  • ISO 37301: 2021
  • BBA certified: no. 16/5332
