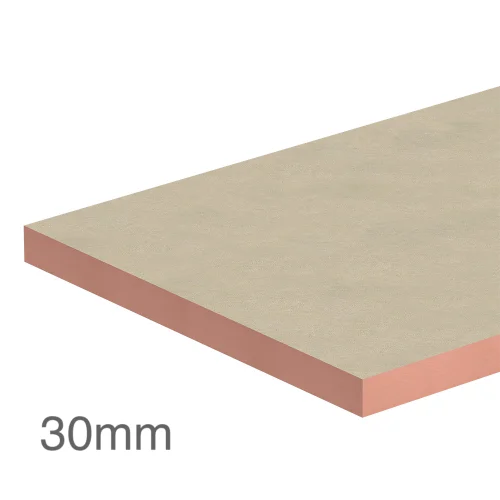

Single Board 30mm Kooltherm K5 External Wall Insulation Board Kingspan - 1200mm x 400mm
- Product Code: A1-3747
- Brand: Kingspan
(tech. support: 01544 388 601) - Model and Size: 1200mm x 400mm - 0.48m2
- Pack Coverage: 0.48m2
- Delivery Time: In Stock 1-2 working days
=
m2
Single Board 30mm Kooltherm K5 External Wall Insulation Board Kingspan - 1200mm x 400mm
Thickness: 30mm
Width: 400mm
Length: 1200mm
Pack Coverage: 0.48m2
Density: 35kg/m3
Weight/m2: 1.05kg
Weight: 0.5kg
Thermal Conductivity: 0.021W/mK
R-Value: 1.4m2K/W
Compressive Strength: 100kPa
Fire Rating (Reaction to Fire): C(Class 1)
30mm - 1200mm x 400mm Kingspan Kooltherm K5 External Wall Insulation Board is the external wall insulation comprising a premium performance rigid thermoset phenolic insulation core faced on both sides with a glass tissue based facing auto-adhesively bonded to the insulation core during manufacture. The product is manufactured with a blowing agent that has zero Ozone Depletion Potential (ODP) and low Global Warming Potential (GWP).
CHARACTERISTICS
- Premium performance - thermal conductivity as low as 0.020 W/m.K
- Suitable for use behind traditional and lightweight polymer modified renders and dry cladding systems
- Unaffected by air infiltration
- Resistant to the passage of water vapour
- Easy to handle and install
- Ideal for new build and refurbishment
- Nondeleterious material
- Manufactured with a blowing agent that has zero ODP and low GWP
APPLICATION
External wall insulation:
- Solid brick wall
- Solid block wall
- Cavity block wall
- Cavity brick wall
- Cavity dense block wall
CERTIFICATES
Kingspan Kooltherm K5 External Wall Board is manufactured to the highest standards under a management system certified to:
- BS / I.S. EN ISO 9001: 2015 (Quality Management Systems. Requirements)
- BS / I.S. EN ISO 14001: 2015 (Environmental Management Systems. Requirements)
- Covered by BBA Certificate
- Covered by NSAI Agrement Certificate
Kingspan K5 is a non stock line - lead time 3-5 working days. Once purchased this product is non-returnable. Terms and conditions apply.
Kooltherm_K5.pdf
