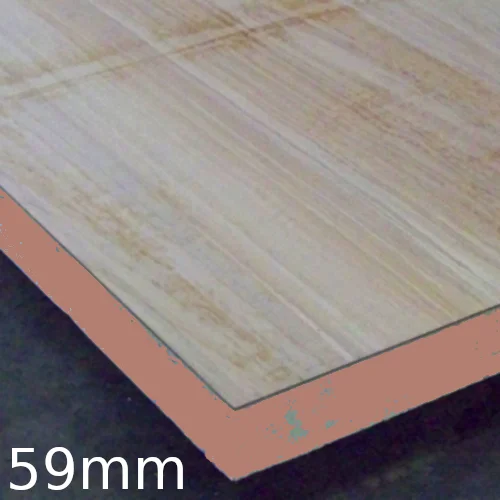

59mm Insulated Render Panel - 50mm Kingspan Kooltherm K5 Bonded to 9mm OSB - 2400mm x 1200mm

  • 59mm Insulated Render Panel - 50mm Kingspan Kooltherm K5 Bonded to 9mm OSB  - 2400mm x 1200mm
  • Product Code: A1-4315
  • Model and Size: 2400x1200 - 2.88m2
  • Board Coverage: 2.88m2
  • Delivery Time: 1 - 5 working days

= m2

59mm Thermal Render Panel - 9mm OSB Bonded to 50mm Kingspan Kooltherm K5 - 2400mm x 1200mm

Thickness: 59mm
Width: 1200mm
Length: 2400mm
Board Coverage: 2.88m2
Density: 400kg/m3
Weight/m2: 8.67kg
Weight: 23.6kg
Thermal Conductivity: 0.020W/mK
R-Value: 2.5m2K/W
Compressive Strength: 150kPa

59mm Thermal Render Panel is a composite board consists of a 9mm OSB board bonded to a 50mm Kooltherm K5 phenolic foam core that can take the render. The Thermal Render Board provides a high level of thermal insulation, render board and a quicker construction saving money and time. It also saves the usable space due to the thinness of Kooltherm K5 phenolic foam's thermal conductivity values.

APPLICATION
  • An external wall composite insulation panel that can take render.

CHARACTERISTICS
  • Composite panel,
  • Easy to handle and install,
  • Premium performance - thermal conductivity as low as 0.020 W/m.K,
  • Suitable for use behind traditional and lightweight polymer modified renders,
  • Unaffected by air infiltration,
  • Resistant to the passage of water vapour,
  • Ideal for new build and refurbishment,
  • Manufactured with a blowing agent that has zero ODP and low GWP
