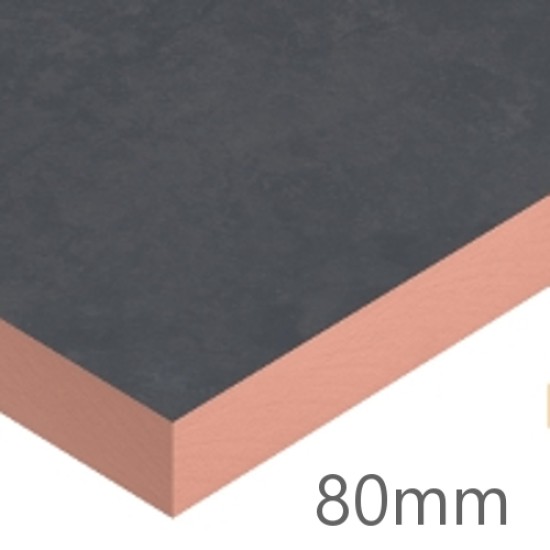

80mm Kingspan Kooltherm K106 Phenolic Cavity Board (pack of 6)

80mm Kingspan Kooltherm K106 Phenolic Cavity Board (pack of 6)

• Thermal conductivity of 0.018 W/m.K,
• 10 mm cavity is maintained resists moisture penetration,
• The watertight, vapour-open polypropylene fleece outer facing protects against moisture penetration,
• Unaffected by air infiltration,
• Easy to handle and install,
• Nondeleterious material,
• Manufactured with a blowing agent that has zero ODP and low GWP

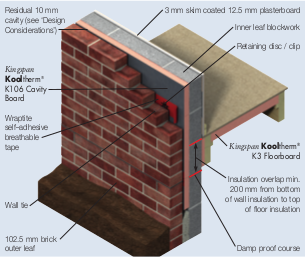

• Kooltherm K106 Cavity Board is normally held in position by the wall ties used to tie the two skins of masonry together,
• Wall ties should include a retaining disc of a thickness <10 mm,
• For a solid concrete ground floor the first row of wall ties are installed in the inner leaf at 600 mm horizontal centres, a minimum of one course of blockwork below the damp proof course, or 150 mm below the top surface of the ground floor perimeter insulation upstand, whichever is the lower,
• For a suspended timber floor the first row of wall ties are installed in the inner leaf at 600 mm horizontal centres a minimum of 200 mm below the top surface of the ground floor perimeter insulation upstand,
• Continue constructing the inner leaf up to the next wall tie course (450 mm above the first usually 2 block courses),
• The next course of wall ties is positioned at the usual 900 mm horizontal centres,
• The next course of blockwork is installed to secure the ties,
• The first row of insulation boards should now be installed between the two rows of wall ties, ensuring each insulation board is retained tight against the inner leaf and joints are lightly butted,
• Each board should be secured at a minimum of three points,
• A selfadhesive breathable tape, no less than 100 mm wide, should be applied to all horizontal and vertical joints, board edges and abutting junction interfaces. The tape should be applied in a smooth and wrinklefree manner and should extend no less than 50 mm either side of joints, board edges and abutting junction interfaces. The seal must be maintained at protrusion locations e.g. wall ties,
• The outer leaf is then built up to the level of the top of the boards and the process is repeated,
• When insulating a gable, insulation boards should be continued 200 mm beyond the height of the top storey ceiling and a cavity tray installed above the insulation,
• After raising each section of inner leaf, before installation of the insulation board, excess mortar should be removed and mortar droppings cleaned from exposed edges of the installed insulation boards,
• Use of a cavity batten or cavity board to protect board edges and maintain a clear cavity,
• At the completion of each days work, or whenever work is interrupted for extended periods of time, board edges and joints should be protected from inclement weather.

CERTIFICATION

Kooltherm K106 Cavity Board is manufactured in accordance with

• ISO 9001: 2015 (Quality Management Systems. Requirements),
• ISO 14001: 2015 (Environmental Management Systems. Requirements),
• BS OHSAS 18001: 2007 (Occupational Health and Safety Management Systems. Requirements)
• BS EN ISO 50001: 2011 (Energy Management Systems. Requirements with guidance for use),
• The Harmonised Standard BS EN 13166: 2012 + A1: 2015 (Thermal insulation products for buildings. Factory made phenolic foam (PF) products. Specification).
