Insulated Render Systems

British Gypsum Gypframe 72 EDCL 80 CurveLiner Channel - Pack of 10

British Gypsum Gypframe 72 EDCL 80 CurveLiner Channel - Pack of 10
British Gypsum Gypframe 72 EDCL 80 CurveLiner Channel - Pack of 10
British Gypsum Gypframe 72 EDCL 80 CurveLiner Channel - Pack of 10
British Gypsum Gypframe 72 EDCL 80 CurveLiner Channel - Pack of 10
Rate this product
British Gypsum Gypframe 72 EDCL 80 CurveLiner Channel - Pack of 10
Price: £247.99 (£297.59 inc VAT)
20 or more £237.75 (£285.30 inc VAT)
30 or more £231.56 (£277.87 inc VAT)
  • Product Code: A1-820
  • Delivery Time: 2 - 4 days
  • Brand: British Gypsum (Tech. support: 01159456123)
  • Model: CurveLiner - 2 m
  • Weight: 2.70kg
Our ratings on 18-09-2026:
Google My Business Reviews
4.8 out of 5

British Gypsum Gypframe 72 EDCL 80 CurveLiner Channel - Pack of 10

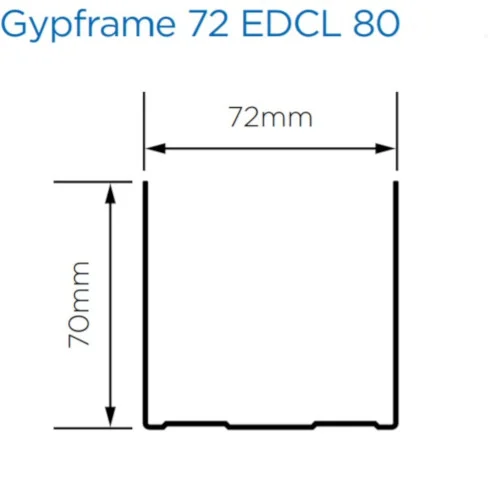

Width: 72mm
Length: 2025mm
Weight: 2.7kg

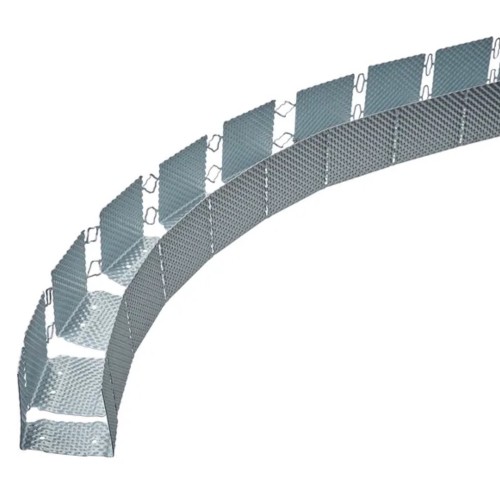

British Gypsum Gypframe 72 EDCL 80 CurveLiner Channel is one of the available extra deep channels used to secure the 'C' studs at ceiling and floor junctions and to make the curved walls construction simpler. The product is specially applicable to constructions where better impact resistance and deflection head details are needed which is achieved by applying a special manufacturing process providing increased strength and better screw holing.

The channel is usually used in the GypWall CURVE being a flexible system that is not only designed for curved walls and linings but can also provide an aesthetic and well designed concept. It requires no curved timber templates, providing a minimum radii of 600mm, applicable to communal areas or reception, in particular.

APPLICATION

Gypframe 72 EDCL 80 CurveLiner Channel is used to ease the curved walls construction to a minimum radius of 600mm.

CERTIFICATION

The product is in compliance with the:

  • British Standard BS 7364
  • European Standard EN 14195
  • American Standard ASTM C645
