70mm Cellecta Deckfon Batten

70mm Cellecta Deckfon Batten
70mm Cellecta Deckfon Batten
Guide Price: £12.07 (£14.48 inc VAT)
  • Product Code: A1-735
  • Delivery Time: 3 - 5 days
  • Brand: Cellecta
  • (Tech. support: 01634296677)
  • Model and Size: 70 mm
Our ratings on 23-04-2024:
TrustPilot Review 4.6
4.6 out of 5 - Excellent
Google My Business Reviews
4.8 out of 5

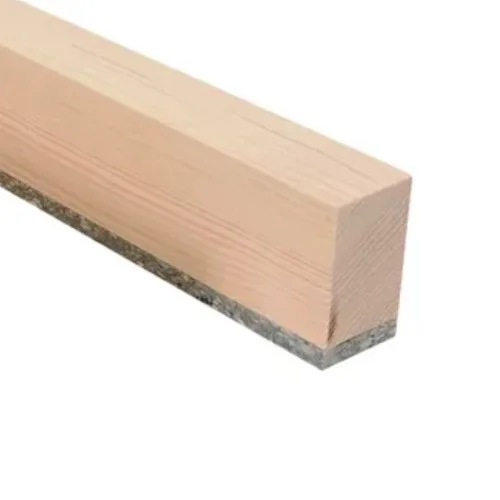

70mm Cellecta Deckfon Batten

Resilient layer thickness: 10mm
Height: 70mm
Width: 40mm
Length: 2400mm
Impact Sound Insulation: 49dB
Airbourne sound insulation: 54dB

DECKfon Batten 70 acoustic battens are designed to be installed on steel, concrete and timber separating floors to deliver excellent soundproofing performance. DECKfon acoustic battens consist of a layer of recycled, low resonance, open-cell, flexible polyurethane foam bonded to an FSC certified timber batten. Rigorously tested, they are robust details compliant for steel, concrete and timber separating floors. DECKfon Batten 45 are suitable where there is limited floor space.

APPLICATION
Cellecta Deckfon 70 Battens are applicable in:
  • timber separating floors
  • concrete separating floors and
  • steel separating floors.
CHARACTERISTICS
  • Excellent acoustic performance
  • Very quick and easy installation
  • Consisting of FSC certified timber
  • Over 4.000.000 Lm have successfully been installed
  • Available in two heights – 45 and 70 mm
  • Compliant with Robust Details.
CERTIFICATION
  • Robust detail compliant treatment: 45 - FFT3 for E-FS-1, E-FC-1, E-FC-2 & E-FC-7.
