Isomass Isocheck Isobar - Resilient Bar - 1.8m x 78mm x 26mm

Isomass Isocheck Isobar - Resilient Bar - 1.8m x 78mm x 26mm
  • Product Code: A1-3122
  • Delivery Time: 3 - 5 days
  • Brand: Isomass (Tech. support: 08458383389)
  • Model: 1.8m x 78mm x 26mm
  • Weight: 0.85kg
Our ratings on 13-11-2026:
Google My Business Reviews
4.8 out of 5
To GET BEST PRICE for this product only fill below:
Need a quote for more products? and continue browsing to find other materials needed.

Isomass Isocheck Isobar - Resilient Bar - 1.8m x 78mm x 26mm

Width: 78mm
Length: 1800mm
Weight: 0.85kg

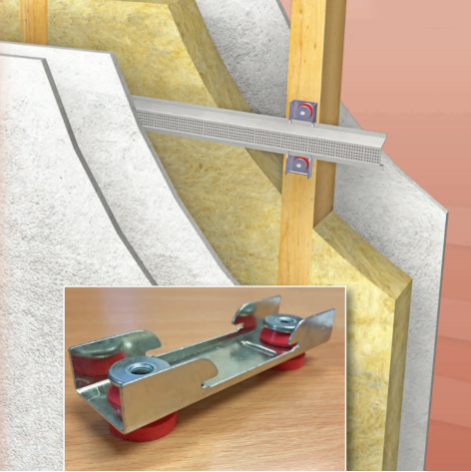

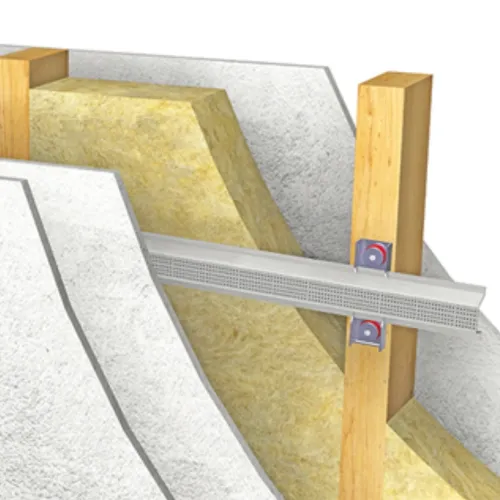

Isomass Isocheck Isobar - 1.8m x 78mm x 26mm is a vibration absorbing rolled galvanised steel bar that could be easily mounted on to the matching recycled rubber blocks, which are fixed to ceiling joists, timber and metal studs simply and easily secures the Isobar furring channel and decouples the gypsum board from the structure, hence providing a resilient isolation solution.

CHARACTERISTICS

  • Economical, easy to install system.
  • Attaches simply to ceiling joists, wall studs and masonry.
  • Maximizes available occupied space,
  • Withstands greater loads than standard systems,
  • One or more layers of gypsum board can be hung to this channel

INSTALLATION

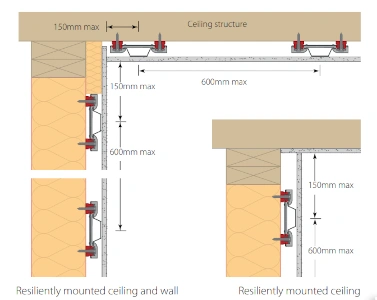

isomass isocheck isobar isoblock installation1

isomass isocheck isobar isoblock installation2

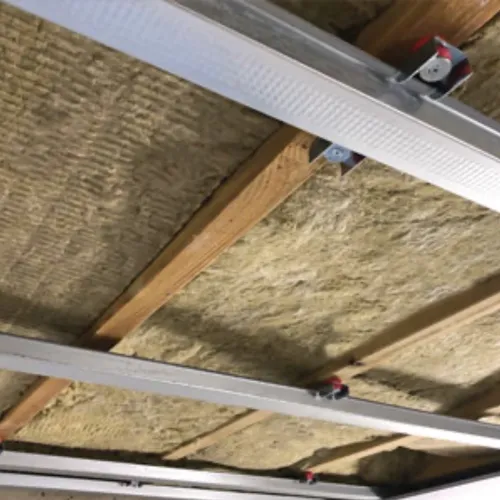

Isocheck Isoblocks simply attached to ceiling joists, wall studs or masonry and easily secure the Isobar furring channel.

CERTIFICATION

isomass isocheck isobar isoblock certifiction
