PL/PTS/4.9x5.5mm Stainless Steel Stop Drill for Drilling 5.5mm Hole in HPL panels - Plasticlad

PL/PTS/4.9x5.5mm Stainless Steel Stop Drill for Drilling 5.5mm Hole in HPL panels - Plasticlad
  • Product Code: A1-6774
  • Delivery Time: 7 - 10 days
  • Brand: Plastestrip
  • (Tech. support: 0172674771)
  • Model: PL/PTS/4.9x5.5mm
Our ratings on 12-06-2026:
Google My Business Reviews
4.8 out of 5
Show Other sizes

To GET BEST PRICE for this product only fill below:

Need a quote for more products? Add to Quote and continue browsing to find other materials needed.

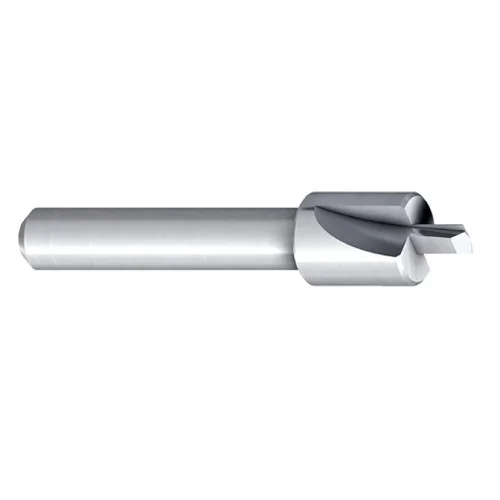

PL/PTS/4.9x5.5mm Stainless Steel Stop Drill for Drilling 5.5mm Hole in HPL panels - Plasticlad

Plasticlad Stainless Steel Stop Drill for Drilling 5.5mm Hole in HPL panels is a precision-engineered tool that is used to create consistent, high-accuracy 5.5mm holes in High-Pressure Laminate (HPL) panels, ensuring that every fixing point is prepared to the exact depth and diameter required for PTS panel screws. By incorporating a physical "stop" mechanism, this tool eliminates the risk of human error, preventing installers from drilling too deep and damaging the underlying support structure or the panel itself.

CHARACTERISTICS

  • This tool is manufactured from high-grade A4 Stainless Steel. This provides exceptional resistance to the abrasive nature of HPL resins and ensures the tool itself does not introduce carbon steel contaminants that could cause "tea-staining" on the facade.
  • The fixed collar acts as a physical limit, ensuring that every hole is drilled to a uniform depth. This is essential for maintaining the structural integrity of the ventilation cavity and preventing "over-drilling" into the subframe.
  • The drill tip is ground to a specific angle to penetrate the hard, decorative surface of HPL panels without chipping or "splintering" the laminate.
