100mm Unilin ECO360/CW Partial Fill Cavity Wall PIR Insulation Board - 1200mm x 450mm - Pack of 4
100mm Unilin ECO360/CW Partial Fill Cavity Wall PIR Insulation Board - 1200mm x 450mm - Pack of 4
- Product Code: A1-5067
- Delivery Time: 1-3 working days
- Brand: Unilin (prev. Xtratherm) (Tech. support: 03712221055)
- Model: 1200x450mm - 2.16m2
Our ratings on 13-11-2026:
4.8 out of 5
100mm Unilin ECO360/CW Partial Fill Cavity Wall PIR Insulation Board - 1200mm x 450mm - Pack of 4
Length: 1200mm
Width: 450mm
Thickness: 100mm
Pack Quantity: 4
Board Coverage: 0.54m2
Pack coverage: 2.16m2
Thermal Conductivity: 0.020W/mK
R-Value: 5m2K/W
Compressive Strength: 120kPa

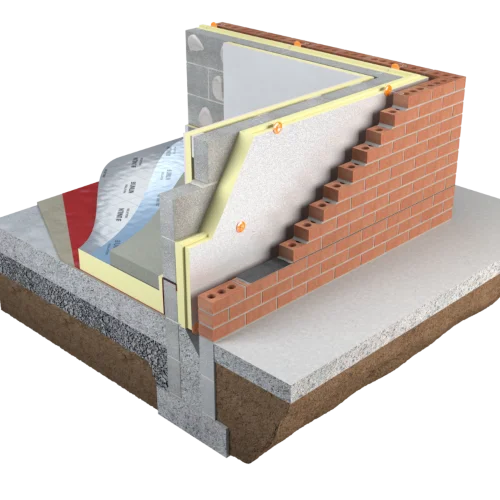

100mm Unilin ECO360/CW Partial Fill Cavity Wall board has a core of modified polyisocyanurate (PIR) bonded to low emissivity textured aluminium foil facings offering excellent insulation performance with thermal conductivity. Unilin ECO360 CW board reduces the junctions prone to thermal bridging improving the thermal performance of the cavity wall. Unilin ECO360 CW is Halogen free and is manufactured under the highest standards of ISO 9001 and 14001 Quality and Environmental Management Systems.
CHARACTERISTICS
- High thermal performance rigid insulation,
- Bio-enhanced PIR insulation,
- Easy to Install,
- Non-deleterious material,
- Suitable for new build and refurbishment,
- Manufactured with zero ODP blowing agent,
- Reduces Thermal Bridging,
- Reduced Risk of Condensation,
- Closed cell structure – moisture resistant.
APPLICATION
- Partial fill cavity walls
CERTIFICATION
Unilin_ECO_CW_Datasheet.pdf
