100mm Unilin ECO360 MA Sarking PIR Insulation Board - 1200mm x 2400mm - Pack of 4

100mm Unilin ECO360 MA Sarking PIR Insulation Board - 1200mm x 2400mm - Pack of 4
100mm Unilin ECO360 MA Sarking PIR Insulation Board - 1200mm x 2400mm - Pack of 4
100mm Unilin ECO360 MA Sarking PIR Insulation Board - 1200mm x 2400mm - Pack of 4
100mm Unilin ECO360 MA Sarking PIR Insulation Board - 1200mm x 2400mm - Pack of 4
100mm Unilin ECO360 MA Sarking PIR Insulation Board - 1200mm x 2400mm - Pack of 4
  • Product Code: A1-5064
  • Delivery Time: 1-3 working days
  • Brand: Unilin (prev. Xtratherm)
  • Model and Size: 1200x2400mm - 11.52m2
Our ratings on 10-07-2025:
Google My Business Reviews
4.8 out of 5
Show other thicknesses

100mm Unilin ECO360 MA Sarking PIR Insulation Board - 1200mm x 2400mm - Pack of 4

Length: 2400mm
Width: 1200mm
Thickness: 100mm
Pack Quantity: 4
Board Coverage: 2.88m2
Pack coverage: 11.52m2
Thermal Conductivity: 0.020W/mK
R-Value: 5m2K/W
Compressive Strength: 150kPa

100mm Unilin ECO360 MA Sarking PIR Insulation board has a bio-enhanced, halogen free core of modified polyisocyanurate (PIR) pitched roof insulation bonded to textured low emissivity foil facings. Unilin ECO360 MA Sarking board offers excellent insulation performance with excellent thermal conductivity. Unilin ECO360 MA has bio-degardable packaging and is manufactured under the highest standards of ISO 9001 and 14001 Quality and Environmental Management Systems.

CHARACTERISTICS
  • Bio-enhanced PIR insulation,
  • Halogen free,
  • High thermal performance rigid Insulation,
  • Easy to Install,
  • Non-deleterious material,
  • Suitable for new build and refurbishment,
  • Manufactured with zero ODP blowing agent,
  • Reduces Thermal Bridging,
  • Closed cell structure – moisture resistant,
  • Bio-degradable packaging materials.
APPLICATION
  • Pitched roof
  • Warm roof
  • Above and between rafters
  • Under rafters, above ceilings
INSTALLATION

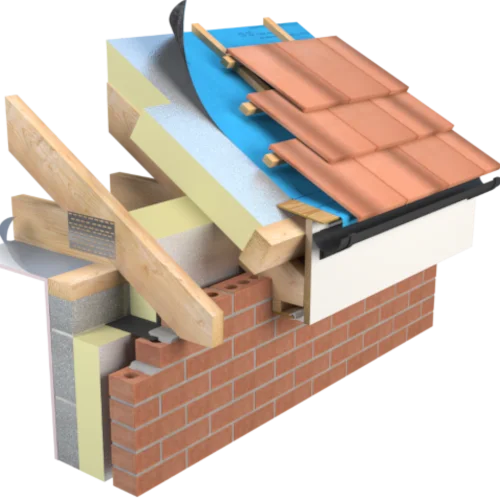

Warm roofs
  • Ensure cavity wall insulation has continued to roof height to engage with roof insulation.
  • Fix a timber stop rail to end of rafter at eaves.
  • Lay Unilin ECO360 MA Sarking insulation stagger jointed over rafters ensuring joints are supported by rafters.
  • Ensure boards are tightly butted fill any gaps with expanding foam. A vapour permeable underlay should be fitted; refer to manufacturers Agrèment certification.
  • Providing an unvented void under the membrane can improve the thermal performance.
  • Fix counter batten with approved fixings.
  • Ventilation may have to be provided  subject to certification.
  • A second layer of insulation may be added between the rafters.
  • Provide a vapour control layer to the underside of the construction. Current Building Regulations/Standards should be considered with regard to  the requirements for and/or provision  of fire stops.
CERTIFICATION
