112.5mm Unilin Safe-R 019/TB-MF Phenolic Composite Insulated Panel - Mechanically Fixed - 2400mm x 1200mm

Length: 2400mm
Width: 1200mm
Thickness: 112.5mm
Board Coverage: 2.88m2
Weight/m2: 11.1kg
Weight: 32kg
Thermal Conductivity: 0.019W/mK
R-Value: 5.3m2K/W
Fire Rating (Reaction to Fire): B(Class 0)

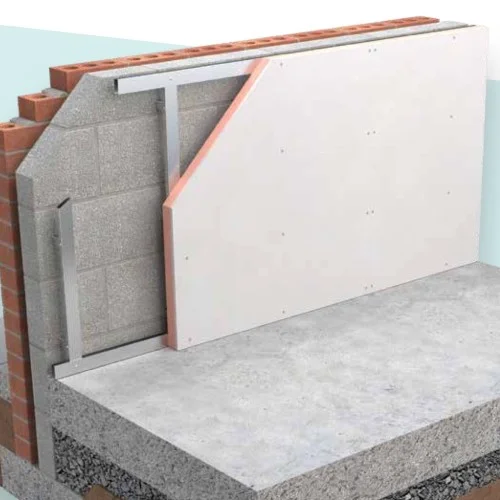

112.5mm Unilin Safe-R 019/TB-MF Phenolic Composite Insulated Panel is a composite insulated panel designed to provide high thermal performance and drylining in a single operation. It combines a rigid phenolic insulation core with a composite foil facing, factory‑bonded to 12.5 mm tapered‑edge plasterboard, creating a slim, efficient solution for internal walls, sloped roofs and ceilings. SR019/TB‑MF is engineered specifically for mechanically fixed drylining systems, offering excellent insulation values thanks to its low‑lambda phenolic core. The foil facings enhance thermal efficiency, while the integrated plasterboard speeds up installation by eliminating the need for separate layers.

APPLICATION

  • Internal drylining of masonry walls
  • Sloped roof linings
  • Ceiling insulation upgrades
  • Refurbishment projects requiring reduced build‑up thickness

CHARACTERISTICS

  • Composite phenolic insulation core: Delivers high thermal performance with a lambda value as low as 0.019 W/mK (insulation only).
  • Factory‑bonded plasterboard: 12.5 mm tapered‑edge board to EN 13950 for a smooth internal finish.
  • Mechanically fixed installation: Suitable for battens or proprietary fixing systems in line with Unilin guidance.
  • Insulation and drylining in one: Reduces installation time and build‑up thickness, ideal for refurbishment and new‑build projects.
  • Foil facings on both sides: Improve thermal performance and moisture resistance.
  • Reaction to Fire: Euroclass B-s1 d0

CERTIFICATION

  • ISO 45001:2023+A1:2024 Occupational Health & Safety Management Systems
  • ISO 45001 Occupational Health & Safety Management Systems
  • ISO 9001:2015+A1:2024 Quality Management Systems
