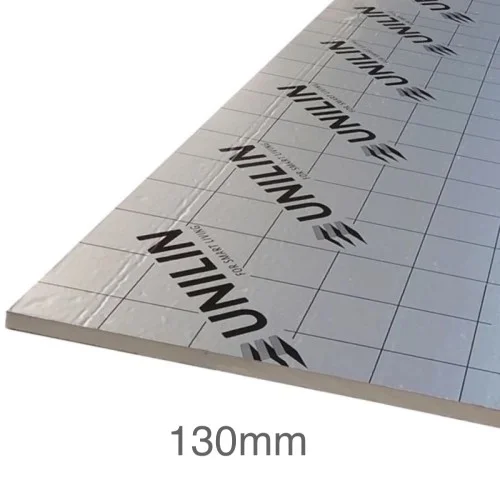

130mm Unilin Thin-R FR/ALU Flat Roof PIR Insulation Board (pack of 3)




                      130mm Unilin Thin-R FR/ALU Flat Roof PIR Insulation Board (pack of 3)







                      - Product Code: A1-4959
- Delivery Time: 1-3 working days
- Brand: Unilin (prev. Xtratherm)
- Model and Size: 2400x1200mm - 8.64m2
- Weight: 35.94kg
Our ratings on 31-10-2025:

              4.8 out of 5
            130mm Unilin Thin-R FR/ALU Flat Roof PIR Insulation Board (pack of 3)
Length: 2400mm
Width: 1200mm
Thickness: 130mm
Pack Quantity: 3
Board Coverage: 2.88m2
Pack Coverage: 8.64m2
Density: 32kg/m3
Weight/m2: 4.16kg
Weight: 35.94kg
Thermal Conductivity: 0.022W/mK
R-Value: 5.9m2K/W
Compressive Strength: 150kPa
Fire Rating (Reaction to Fire): E
40mm Unilin Thin-R FR/ALU Flat Roof PIR Insulation Board is a flat roof insulation with enhanced vapour resistant performance. Unilin Thin-R FR/ALU board is faced with low emissivity aluminium facings both sides. Rot proof and will remain effective for the life span of the building. Unilin Thin-R FR/ALU high thermal performance boards are compatible with mechanically fixed single ply systems and loose laid ballasted systems. This board i not suitable for applications with built-up bitumen based roofing or mastic asphalt systems.
Note: This board was formerly known as 130mm Xtratherm Thin-R FR/ALU Flat Roof PIR Insulation Board
APPLICATION
- Flat roofs
CHARACTERISTICS
- Superior performance PIR foam core,
- Can be readily cut using a sharp knife or fine toothed saw,
- Vapour-tight aluminium facings on both sides,
- Effective thermal performance,
- Limits the risk of condensation,
- For new build or refurbishment,
- Will have life as long as the roof waterproof covering,
- Rot proof and will remain effective for the life span of the building.
CERTIFICATION
