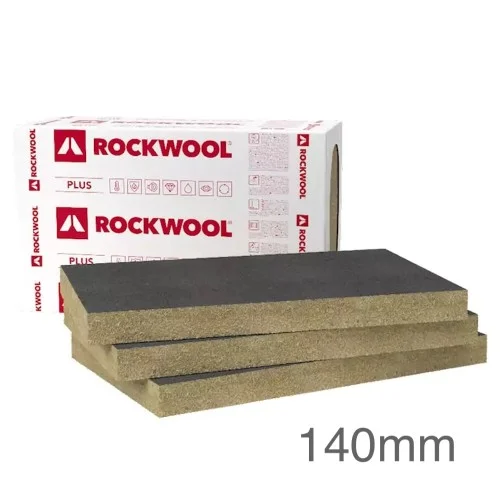

140mm Rockwool Ventirock F Plus Dual-Density Rainscreen Slab - 1000mm x 600mm - pack of 3

140mm Rockwool Ventirock F Plus Dual-Density Rainscreen Slab - 1000mm x 600mm - pack of 3
  • Product Code: A1-5200
  • Delivery Time: 1 - 2 weeks
  • Brand: Rockwool (Tech. support: 08712221780)
  • Model: 1000mm x 600mm - 1.80m2
  • Weight: 16.38kg
Our ratings on 16-11-2026:
Google My Business Reviews
4.8 out of 5
To GET BEST PRICE for this product only fill below:
Need a quote for more products? and continue browsing to find other materials needed.

140mm Rockwool Ventirock F Plus Dual-Density Rainscreen Slab - 1000mm x 600mm - pack of 3

Length: 1000mm
Width: 600mm
Thickness: 140mm
Pack Quantity: 3
Board Coverage: 0.6m2
Pack Coverage: 1.8m2
Density: 65kg/m3
Weight/m2: 9.1kg
Weight: 16.38kg
Thermal Conductivity: 0.034W/mK
R-Value: 4.1m2K/W
Fire Rating (Reaction to Fire): A1(Non-combustible)

140mm Rockwool Ventirock F Plus Rainscreen Slab is a dual-density rigid insulation, used where façade safety is important. As it has a higher density, it can be used for walls with increased fire requirements. Thanks to high resistance to water absorption, the problems of wetting during works are minimized. This back side of the dual density Ventirock F Plus Rainscreen slab will accommodate any irregularities in the substrate. It has very good sound-absorbing parameters, ensuring peace and quiet for the household members. Rockwool Ventirock F Plus Rainscreen Slab can be easily fitted around brackets and other details, and can be tightly butt jointed, so the fibres of adjacent slabs will knit together to provide a continuous thermal performance, thus eliminating heat losses. It is a cost effective solution, as it requires fewer fixings, so very quick to install.

APPLICATION
  • Walls with panel facades (e.g. sheet metal, siding, boards),
  • Walls with a facade of stone, glass,
  • Walls with frame structure,
  • Curtain walls.
CHARACTERISTICS
  • Fire Rated Euroclass A1 when assessed to EN 13501-1,
  • Wind resistant,
  • Water resistant,
  • Reduces airborne sound,
  • High vapour resistance - reduces the risk of condensation,
  • Light and easy to cut to any shape with a sharp knife,
  • Made from a renewable and plentiful naturally occurring resource.

CERTIFICATION

  • EN 13162:2012+A1:2015
  • CE certificate: 1390-CPR-0168/09/P
