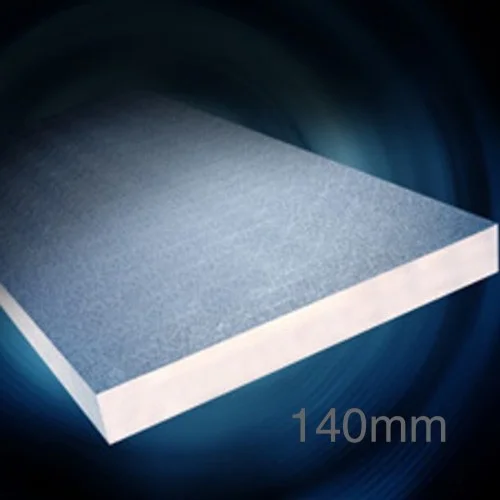

140mm Unilin XtroLiner XtroDeck XO/XD PIR Insulation Board - For Built-up Bituminous Felt Systems - 1200mm x 2400mm - Pack of 2

140mm Unilin XtroLiner XtroDeck XO/XD PIR Insulation Board - For Built-up Bituminous Felt Systems - 1200mm x 2400mm - Pack of 2

Length: 2400mm
Width: 1200mm
Thickness: 140mm
Pack Quantity: 2
Board Coverage: 2.88m2
Pack coverage: 5.76m2
Density: 32kg/m3
Weight/m2: 4.48kg
Weight: 25.8kg
Thermal Conductivity: 0.021W/mK
R-Value: 6.65m2K/W
Compressive Strength: 150kPa
Fire Rating (Reaction to Fire): C(Class 1)

140mm Unilin XtroLiner XtroDeck XO/XD board has a core of modified polyisocyanurate (PIR) bonded to low emissivity embossed aluminium foil facings. Unilin XtroLiner XtroDeck XO/XD board offers excellent insulation performance with excellent thermal conductivity.Unilin XtroLiner XtroDeck XO/XD board is compatible with bituminous based roofing systems containing self adhered underlays with heat activated cap sheets.  It is CFC & HCFC free and is manufactured under the highest standards of ISO 9001 and 14001 Quality and Environmental Management Systems.

CHARACTERISTICS
  • High Thermal Performance Rigid Insulation,
  • Easy to Install,
  • Non-deleterious material,
  • Suitable for new build and refurbishment,
  • Manufactured with zero ODP blowing agent,
  • Reduces Thermal Bridging,
  • Reaction to fire: Euroclass C s2 d0,
  • Closed cell structure – moisture resistant
APPLICATION
  • Partially bonded, self adhered, built-up bituminous felt systems
CERTIFICATION
