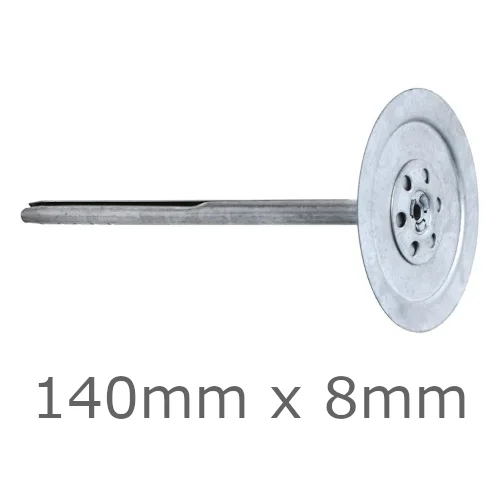

140mm x 8mm MLN Fire Rated Metal Fixings for Rainscreen Insulation in Ventilated Cladding Systems - pack of 50
140mm x 8mm MLN Fire Rated Metal Fixings for Rainscreen Insulation in Ventilated Cladding Systems - pack of 50
- Product Code: A1-4661
- Delivery Time: 5 - 7 days
- Brand: Klimas W-M
- Model and Size: 140mm x 8mm - 50 nos
Our ratings on 19-04-2024:
4.6 out of 5 - Excellent
4.8 out of 5
140mm x 8mm MLN Fire Rated Metal Fixings for Rainscreen Insulation in Ventilated Cladding Systems - pack of 50
Length: 140mm
Diameter: 8mm
Pack Quantity: 50
For insulation thickness: 80mm

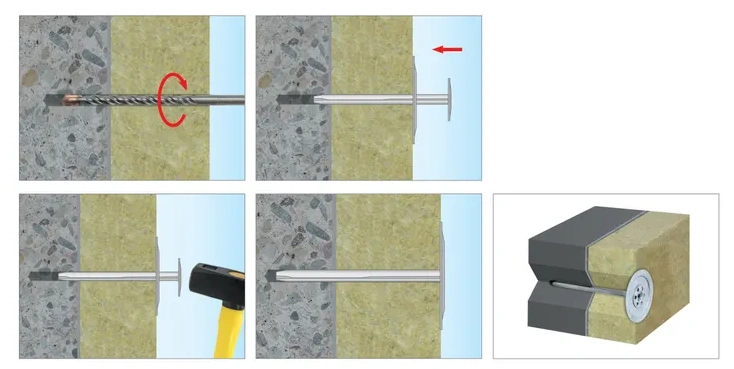

140mm x 8mm Fire Rated MLN Metal Fixings for Rainscreen Insulation in Ventilated Cladding Systems for fixing mineral wool on concrete, aerated concrete, solid clay bricks and solid silicate bricks. Can be used with 80mm thick mineral wool insulation. Anchoring depth 50mm on hard substrate. Fire Rated MLN Metal Fixing have galvanised connector of high corrosion resistance.
CHARACTERISTICS
- Galvanised steel,
- Non-inflammable,
- high corrosion resistance.
- Maximum thickness of mineral wool: 80mm
- Maximum depth of insertion in hard substrate: 50mm
