275mm Ancon Teplo-BF-1 Wall Tie - Heavy Duty Type 1

275mm Ancon Teplo-BF-1 Wall Tie - Heavy Duty Type 1
275mm Ancon Teplo-BF-1 Wall Tie - Heavy Duty Type 1
Price: £2.96 (£3.55 inc VAT)
  • Product Code: A1-3633
  • Delivery Time: 3 - 5 days
  • Brand: Ancon
  • (Tech. support: : +44(0)1142381238)
  • Model and Size: 275mm
Our ratings on 27-06-2025:
Google My Business Reviews
4.8 out of 5
This product has a minimum quantity of 43
Show other sizes

275mm Ancon Teplo-BF-1 Wall Tie - Heavy Duty Type 1

Length: 275mm

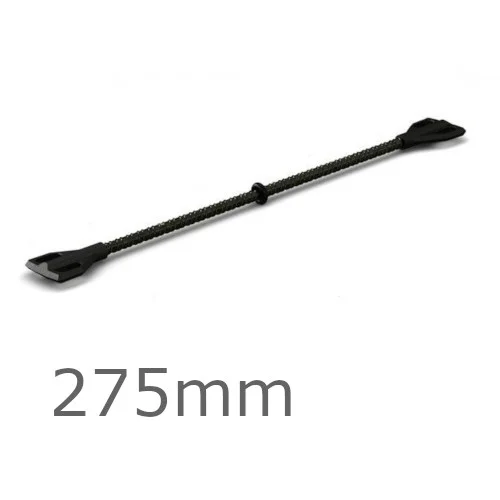

275mm Ancon Teplo-BF-1 Wall Tie is a smart black heavy duty composite wall tie manufactured from pultruded basalt fibres with a thermal conductivity of 0.7 W/mK, which helps to prevent heat escape from the building. The Teplo-BF-1 has specialised moulded safety ends which offer improved buildability and mortar bond strength. The enhanced bond makes it ideal for use in slow drying lime mortars. The Teplo-BF-1 range is BBA approved and can be used in line with NHBC standards. Heavy duty tie suitable for most building sizes and types. Not very flexible and not recommended for applications where there is expected to be excessive differential movement between leaves. This tie can be used at any height. Recommended design embedment of the tie is between 62.5mm and 75mm in each leaf.



Fixing density

  • 2.5 ties/m2
  • 3-4 ties/m2
  • at unbonded edges

CHARACTERISTICS
  • Masonry-to-masonry wall tie,
  • Can be used at any height,
  • Heavy duty type 1 wall tie,
  • Suitable for cavities of 126-150 mm,
  • Movable 'O' ring drip to prevent water crossing the cavity,
  • BBA Approved and can be used in line with NHBC standards.
