30mm Kingspan AlphaCore Pad - Silica-Based Insulation Panel - 600mm x 1000mm

30mm Kingspan AlphaCore Pad - Silica-Based Insulation Panel - 600mm x 1000mm
  • Product Code: A1-7565
  • Delivery Time: TBC
  • Brand: Kingspan (Tech. support: 01544388601)
  • Model: 600mm x 1000mm - 0.60m2
  • Weight: 3.24kg
Our ratings on 18-11-2026:
Google My Business Reviews
4.8 out of 5

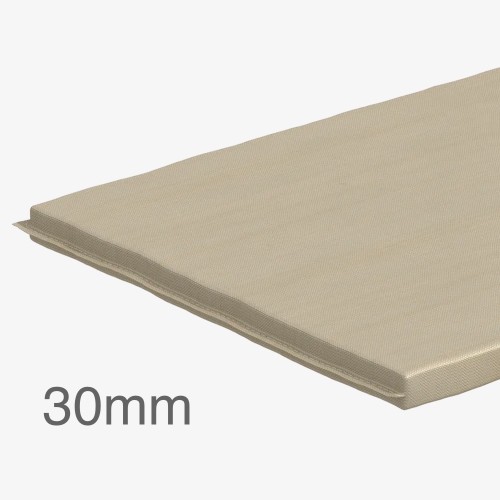

30mm Kingspan AlphaCore Pad – Silica‑Based Insulation Panel - 600mm x 1000mm

Length: 1000mm
Width: 600mm
Thickness: 30mm
Board Coverage: 0.6m2
Weight/m2: 5.4kg
Weight: 3.24kg
Thermal Conductivity: 0.020W/mK
R-Value: 1.5m2K/W
Compressive Strength: 75kPa
Fire Rating (Reaction to Fire): A2(Limited combustibility)

30mm Kingspan AlphaCore Pad is a premium microporous silica‑based insulation panel designed for rainscreen façades and structural soffits where minimal construction depth, high thermal performance, and excellent fire behaviour are required. The board features a water‑repellent pure silica core encased in a glass‑fibre fabric, delivering a slim, robust, and fire‑safe insulation solution for modern façade systems. By combining a hydrophobic core with high-grade glass fibre fabric, it serves as a premium solution for projects where space is at a premium and fire safety is paramount.

AlphaCore Pad is selected when designers need:

  • high thermal performance in very thin façade zones,
  • non‑combustible insulation for rainscreen systems,
  • robust soffit insulation with high compressive strength,
  • moisture‑resistant performance in exposed environments,
  • stable, inorganic insulation with long‑term reliability.
  • It provides a premium, slim insulation solution for demanding façade and soffit applications.

CHARACTERISTICS

  • High thermal performance — λD 0.020 W/mK, enabling thin‑profile façade designs.
  • Microporous silica core — inorganic, stable, and water‑repellent.
  • Euroclass A2‑s1,d0 — excellent reaction‑to‑fire performance for façade and soffit applications.
  • Water‑repellent core — long‑term partial immersion absorption Wlp ≤ 0.95 kg/m.
  • High compressive strength — ≥ 75 kPa, suitable for structural soffits.
  • Dimensional stability — ≤ 0.5 % movement under heat and humidity.
  • Slim construction depth — ideal for projects with boundary restrictions or limited cavity space.
APPLICATION

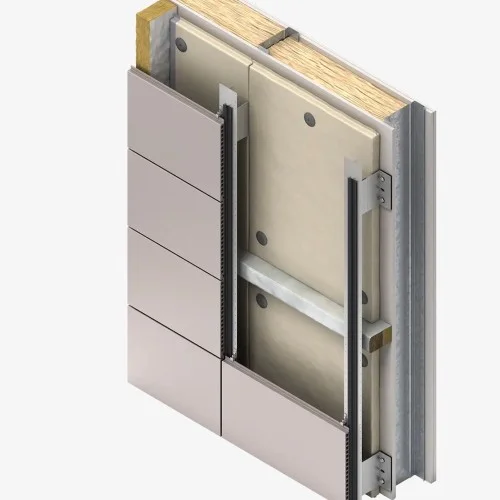

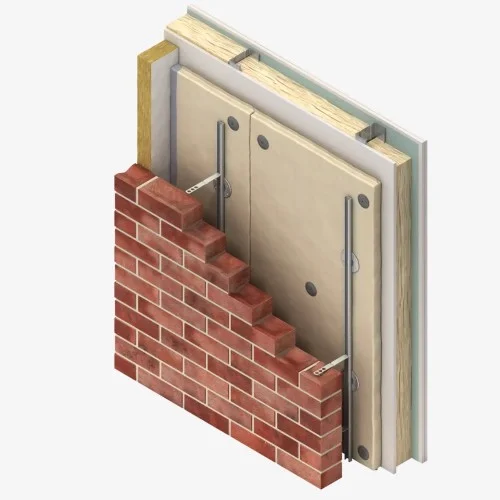

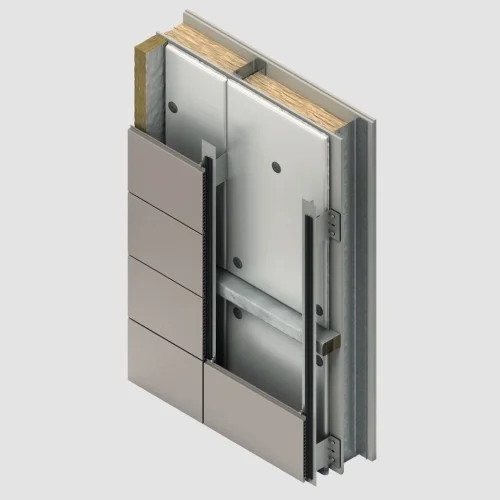

  • Rainscreen façades

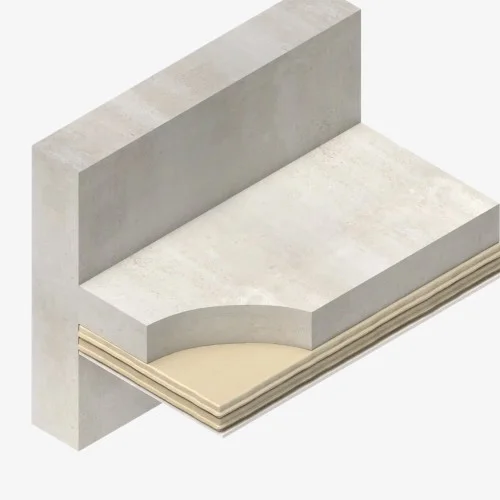

  • Structural ceilings / soffits
  • Refurbishment projects
  • Depth‑restricted façades
  • Layered systems with K‑Roc Rainscreen Slab for enhanced U‑value performance.

How to handle AlphaCore Pad

CERTIFICATIONS

Kingspan AlphaCore Pure is manufactured under a management system certified to

  • ISO 9001: 2015 (Quality management systems),
  • ISO 14001: 2015 (Environmental management systems),
  • ISO 37301: 2021 (Compliance management systems),
  • ISO 45001: 2018 (Occupational health and safety management systems)
  • ISO 50001: 2018 (Energy management systems).

The use of Kingspan AlphaCore Pure is covered by

  • ETA Certificate: ETA 22/0736
