34mm JCW Acoustic Deck 34C - Direct to Joist Acoustic Overlay Board

34mm JCW Acoustic Deck 34C -  Direct to Joist Acoustic Overlay Board
Guide Price
34mm JCW Acoustic Deck 34C - Direct to Joist Acoustic Overlay Board
Guide Price: £55.86 (£67.03 inc VAT)
Price per m2: £38.79/m2 (£46.55 inc VAT)
To add to cart change quantity to minimum of 28. If you need less, ask for a price or add to a quote list.
  • Product Code: A1-4133
  • Delivery Time: 2 - 3 working days
  • Brand: JCW
  • (Tech. support: 08453402858)
  • Model and Size: 2400x600mm - 1.44m2
  • Weight: 26.50kg
Our ratings on 26-08-2025:
Google My Business Reviews
4.8 out of 5
Show other thicknesses

34mm JCW Acoustic Deck 34C - Direct to Joist Acoustic Overlay Board

Width: 600mm
Length: 2400mm
Board Coverage: 1.44m2
Density: 78kg/m3
Weight/m2: 18.4kg
Weight: 26.5kg

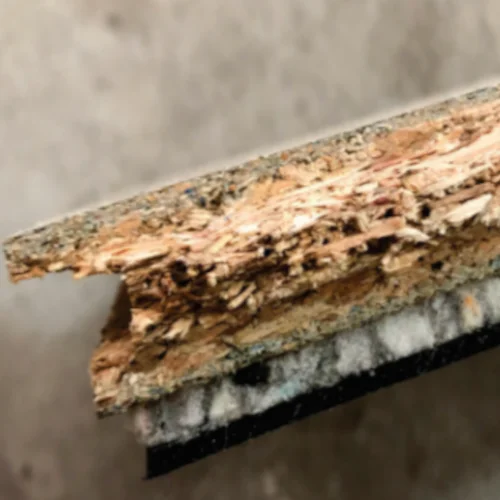

34mm JCW Acoustic Deck 34C is a premium quality overlay board with a 12mm resilient acoustic layer laminated to a 22mm P5 T&G chipboard. The slim profile and high acoustic performance makes it ideal for timber floor refurbishment projects. Acoustic Deck 34C is ideal for overlaying directly to an existing sub-floor.

CHARACTERISTICS
  • An ideal solution where construction heights are a problem,
  • Easy to install,
  • Suitable for for new flooring systems or upgrades to existing separating floors,
  • An economical product for Conversion projects
  • Offers good impact sound improvement,
  • Deck ready for final floor finish e.g.laminates, carpets and carpet tiles,
  • Overlaid onto flat timber floors.



APPLICATION
  • New build,
  • Refurbishment,
  • Domestic upgrade,
  • On concrete and timber floors

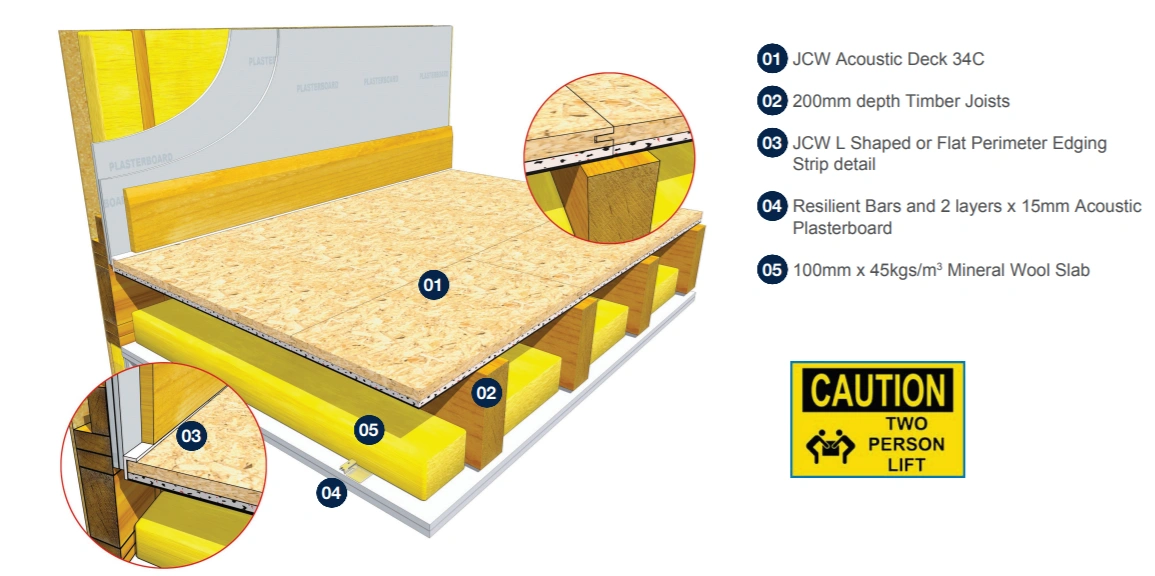

INSTALLATION
  • JCW Acoustic Deck 34C boards are best laid towards the end of the project to protect from general trades, high floor loading and moisture leading to expansion.
  • The boards must be dry and acclimatised at least 24 hours prior to installation, this will minimise any expansion or contraction after installation.
  • When using JCW Acoustic Deck 34C as a structural board, it must be laid on to flat or levelled joists in the opposite direction of the joists.
  • Use tungsten carbide tipped blades for cutting at all times. Particle Board can be drilled using conventional portable drilling machines. It is a wood and cement panel, therefore does not require percussion drilling. It can be sanded using a vibrating sanding machine or belt sanding machine.
  • Ensure that the floor surface is flat, dry, and free from all debris and that the wall surfaces are prepared - plaster skimmed or plaster boarded down to the level of the sub-deck. There shouldn't be any gaps at wall edges.
  • Apply 5mm foam flat wall JCW Perimeter Edging Strip or L shaped strips to the base of all perimeter walls allowing approximately 15mm excess foam above the finished acoustic board height. This can later be folded down on top of the acoustic floor surface to isolate the skirting boards.
  • Remove any tongues at the wall edges, then cut & scribe the first corner board into place and butt up to the Edging Strip. Do not compress the JCW Perimeter Edging Strip.
  • Ensure all T&G board joints must be fully adhesive bonded using a recommended adhesive.
  • Proceed with the second and successive rows ensuring that all board joints are staggered. The last row of boards will require accurate cutting & scribing to butt up to the wall.
  • Any minor gaps between the JCW Perimeter Edging Strip and the acoustic board must be filled with JCW Acoustic Sealant/Mastic.
  • It is imperative that the JCW Perimeter Edging Strip is not compressed in order to maintain acoustic isolation and an allowance for expansion.
  • At the door threshold leave a 5mm gap between the adjoining acoustic boards and fill with JCW Acoustic Sealant. If the sub-floor at the doorways is not flat, the acoustic boards may require additional base support to reduce compressive joint movement. Additionally the surface joints could be sanded up to 5mm to level if required.
  • The finished floor should not be walked on for a period of up to 24 hours to allow the adhesive to cure undisturbed.
  • Ensure that the board joint adhesive has fully cured prior to overlaying any final floor covering.
CERTIFICATION

JCW Acoustic Deck 34C board has been independently tested in a UK Verified independent UKAS accredited laboratory.
