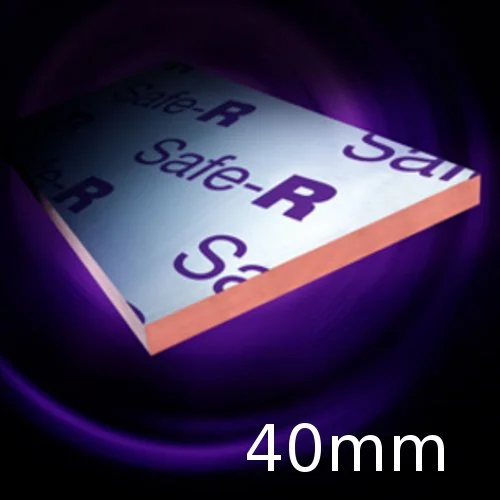

40mm Xtratherm Safe-R SR/RS Phenolic Insulation Rainscreen Cladding Board (pack of 7)
40mm Xtratherm Safe-R SR/RS Phenolic Insulation Rainscreen Cladding Board (pack of 7)
- Product Code: A1-4555
- Delivery Time: 2 - 3 working days
- Brand: Xtratherm (Tech. support: 03712221055)
- Model and Size: 2400x1200mm - 20.16m2
- Weight: 36.29kg
Product discontinued.
Click Get Best Price to request a quotation and we will recommended an equivalent product.
Our ratings on 29-04-2025:
4.7 out of 5 - Excellent
4.8 out of 5
40mm Xtratherm Safe-R SR/RS Phenolic Insulation Rainscreen Cladding Board (pack of 7)
Width: 1200mm
Length: 2400mm
Pack Coverage: 20.16m2
Pack Quantity: 7
Density: 45kg/m3
Weight/m2: 1.8kg
Weight: 36.29kg
Thermal Conductivity: 0.020W/mK
R-Value: 2m2K/W
Compressive Strength: 125kPa
Fire Rating (Reaction to Fire): B(Class 0)
40mm Xtratherm Safe-R SR/RS Phenolic foam is a superior performance rigid insulation rainscreen cladding board with enhanced fire performance, consisting of a Class O phenolic foam core with negligible smoke obscuration. Safe-R SR/RS is faced with low emissivity aluminium facings both sides, and has a thermal conductivity as low as 0.02W/mK.
APPLICATION
- Designed for use for rainscreen cladding
CHARACTERISTICS
- Superior performance phenolic foam,
- Provides the most efficient U-values with minimal thickness,
- Effective thermal and fire performance,
- Low smoke obscuration,
- Low risk fire rating - Class 0,
- For new build or refurbishment,
- Rot proof and will remain effective for the life span of the building,
- Can be readily cut using a sharp knife or fine toothed saw.
CERTIFICATION
- Manufactured under a quality system approved to EN ISO 9001:2000 (Quality Management Systems)
- Manufactured under an environmental system approved to EN ISO 14001:2004 (Environmental Management Systems)
- Is manufactured without the use of CFC's or HCFC's and has Zero Ozone Depletion Potential
- BBA approved
Xtratherm-Safe-R-RainScreen-SR-RS.pdf
