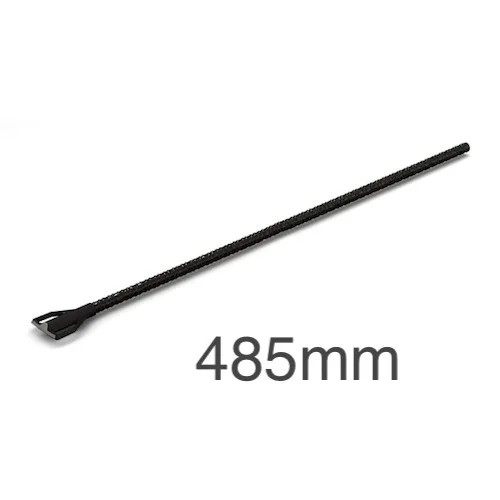

485mm Ancon Teplo-BFR Wall Tie for 350mm Cavity - Type 3 Tie

485mm Ancon Teplo-BFR Wall Tie for 350mm Cavity - Type 3 Tie

Length: 485mm
Cavity width: 350mm

485mm Ancon Teplo-BFR Wall Tie is ideal where a low thermal conductivity restraint fixing is required between a masonry outer leaf and an in-situ structure. This ultra-low thermal conductivity wall tie can be fixed to concrete, masonry, steel and timber substrates. Ancon Teplo-BFR Wall Tie is a 7mm diameter tie manufactured from basalt-fibres with a plain end for resin anchoring into an existing structure and a moulded safety end for building into a new bed joint.

CHARACTERISTICS
  • Can be used on concrete, masonry walls
  • Low thermal conductivity wall tie,
  • Minimises heat loss across an insulated cavity,
  • Ideal for cavity wall construction where mortar joints do not align,
  • The free end can be chemically embedded in 10mm diameter hole.

Brand: Ancon Model and Size: 380mm - BFL-7
Delivery Time: 1-3 working days
380mm Ancon Teplo-BFL-7 Wall Tie is ideal where a low thermal conductivity restraint fixing is required between a masonry outer leaf and an in-situ structure. This ultra-low thermal conductivity wall tie can be fixed to concrete, masonry, steel and timber substrates. Ancon Teplo-BFL-5 Wall Tie has a..
Get Best Price
Brand: Ancon Model and Size: 265mm
Delivery Time: 2 - 3 working days
265mm Ancon Teplo-R Wall Tie is a remedial wall tie is an ultra-low thermal conductivity wall tie manufactured from basalt fibres set in a resin matrix. It minimises heat loss across an insulated cavity, improving the energy efficiency of a masonry cavity wall. It is a plain-ended basalt fibre wall ..
Get Best Price
Brand: Ancon Model and Size: 275mm
Delivery Time: 2 - 3 working days
275mm AC 31 Wall Tie is a masonry remedial wall tie for tying together two leaves of solid walls, where bricks are removed then replaced in the outer leaf. The wavy end is resin-bonded into the inner leaf in a 10mm Ø hole. The triangular end sits in the bed joint. Ancon AC 31 wall tie is s..
Get Best Price
Brand: Ancon Model and Size: 225mm
Delivery Time: 2 - 3 working days
225mm AC 31 Wall Tie is a masonry remedial wall tie for tying together two leaves of solid walls, where bricks are removed then replaced in the outer leaf. The wavy end is resin-bonded into the inner leaf in a 10mm Ø hole. The triangular end sits in the bed joint. Ancon AC 31C wall tie is ..
Get Best Price
Brand: Ancon Model and Size: 175mm
Delivery Time: 2 - 5 working days
175mm Ancon PPS Movement Tie with Debonding Sleeve is designed to accommodate movement in masonry structures while maintaining structural integrity. This innovative tie features a debonding sleeve that allows for controlled movement between the inner and outer leaves of a wall, effectively reducing ..
Get Best Price
Ancon CFS252 Concrete Fixing Screws - Fixings for Ancon 25/14 Restraint System to Concrete Wall - bag of 100
Guide Price
Brand: Ancon Model and Size: CFS252
Delivery Time: 2 - 5 working days
Ancon CFS252 Concrete Fixing Screws is used to fix an outer leaf of brickwork through any kind of insulation to a concrete wall. These zinc plated carbon steel screws should be used in combination with Ancon Compression Sleeves in the same length as the insulation thickness being used..
Guide Price: £310.62
£372.74 inc VAT
Get Best Price
