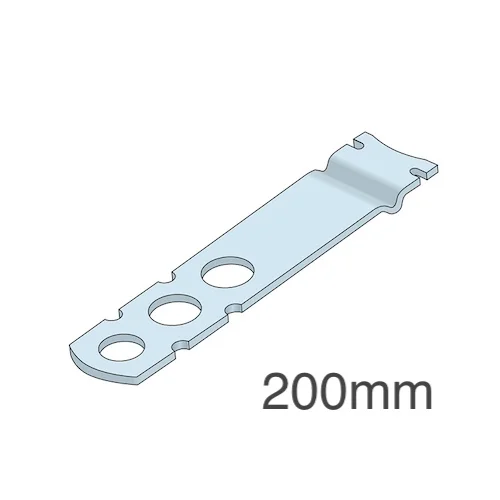

Ancon SD25/200 Channel Wall Tie - Fixings for Ancon 25/14 Restraint System - pack of 250

Ancon SD25/200 Channel Wall Tie - Fixings for Ancon 25/14 Restraint System - pack of 250
  • Product Code: A1-5573
  • Delivery Time: 2 - 5 working days
  • Brand: Ancon (Tech. support: : +44(0)1142381238)
  • Model: SD25/200
Our ratings on 18-11-2026:
Google My Business Reviews
4.8 out of 5
To GET BEST PRICE for this product only fill below:
Need a quote for more products? and continue browsing to find other materials needed.

Ancon SD25/200 Channel Wall Tie - Fixings for Ancon 25/14 Restraint System - pack of 250

Length: 200mm
Pack Quantity: 250
Open Cavity: 135-159mmmm

Ancon SD25/200 Channel Wall Ties with a safety ended v drip for 135-159mm open cavity for Ancon 25/14 channel to be fixed to an outer leaf of brickwork. They are placed in the channel by rotating through 90° and can be easily moved to the required position to be built into the masonry bed joint.

SD tie connection

25 14 channel profile 25 14 channel vertical profile

Ancon 25 14 channel connected to concrete 2   Ancon 25 14 channel connected to concrete 3   Ancon 25 14 channel connected to concrete

Ancon 25 14 channel connected to steel frame 2  Ancon 25 14 channel connected to steel frame 3  Ancon 25 14 channel connected to steel frame

BENEFITS
  • Quick installation,
  • Avoids compression of insulation,
  • Improved thermal bridging.

Note: Channels and Screws are bought separately
