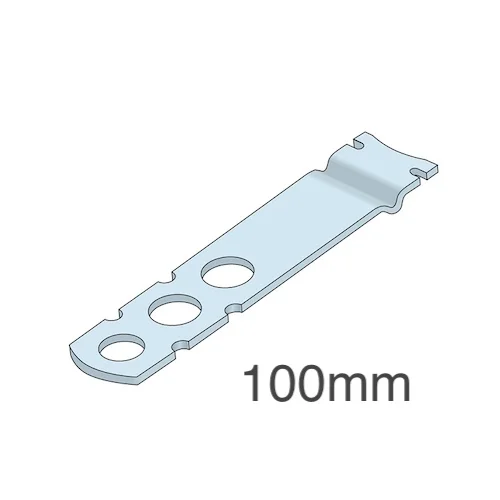

Ancon SD25/100 Channel Wall Tie - Fixings for Ancon 25/14 Restraint System - pack of 250
Ancon SD25/100 Channel Wall Tie - Fixings for Ancon 25/14 Restraint System - pack of 250
- Product Code: A1-5569
- Delivery Time: 2 - 5 working days
- Brand: Ancon (Tech. support: : +44(0)1142381238)
- Model and Size: SD25/100
Our ratings on 22-08-2025:
4.8 out of 5
Ancon SD25/100 Channel Wall Tie - Fixings for Ancon 25/14 Restraint System - pack of 250
Length: 100mm
Pack Quantity: 250
Open Cavity: 35-59mm

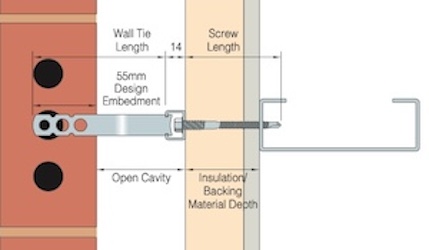

Ancon SD25/100 Channel Wall Ties with a safety ended v drip for 35-59mm open cavity for Ancon 25/14 channel to be fixed to an outer leaf of brickwork. They are placed in the channel by rotating through 90° and can be easily moved to the required position to be built into the masonry bed joint.
BENEFITS
- Quick installation,
- Avoids compression of insulation,
- Improved thermal bridging.
Note: Channels and Screws are bought separately
