50mm Isocheck Shallow Batten 50 - 1800mm x 45mm x 50mm

50mm Isocheck Shallow Batten 50 - 1800mm x 45mm x 50mm

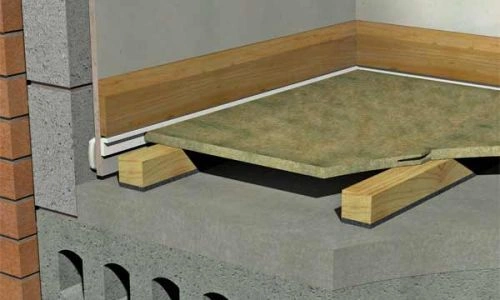

45mm x 50mm Econocheck Shallow Batten 50 is part of a suspended concrete floor system, designed for reducing sound transmission and improving acoustic performance of level concrete floors. Isocheck Shallow Batten consists of a layer of 15mm ACF (Acoustic Chip Foam) bonded to a FSC-certified softwood batten. The system is used in new build refurbishment and conversion applications, including the possibility of combining it with underfloor heating systems, able to meet the requirements of the Building Regulations, Approved Document E 2003 (including the subsequent amendments in 2004) and the Code for Sustainable Homes.

• To be used over level concrete floors for new build projects, refurbishments and conversions.

• The sub-floor must be clean and dry,
• The battens should be laid about 50mm from the wall around the perimeter and then positioned at 400mm or 500mm centres,
• Once the perimeter battens have been properly positioned, the rest of the area should be also filled with battens, with a small gap left between the battens.
• The chipboards should be laid across the battens and a 10mm gap left clear at the perimeter.
• The chipboards should be fixed to the battens with annular ring shank nails and appropriate adhesive.

• Approved Document E of the Building Regulations.
