6.5mm Isocheck Impact Mat 100 - Acoustic Underlay

6.5mm Isocheck Impact Mat 100 -  Acoustic Underlay
6.5mm Isocheck Impact Mat 100 - Acoustic Underlay
  • Product Code: A1-3164
  • Delivery Time: 2 - 3 working days
  • Brand: Isomass
  • (Tech. support: 08458383389)
  • Model and Size: 1.2m x 12.5m - 15m2
  • Weight: 39.00kg
Our ratings on 08-08-2025:
Google My Business Reviews
4.8 out of 5
Show other thicknesses

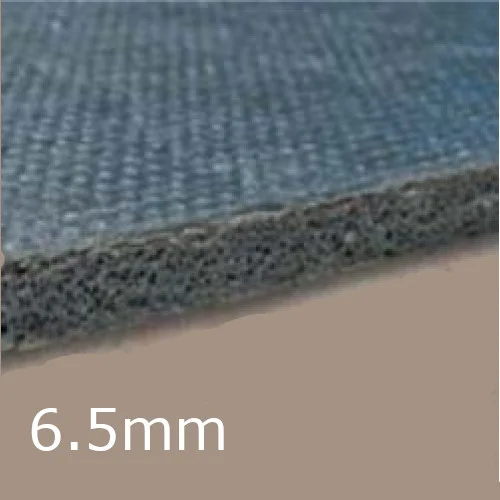

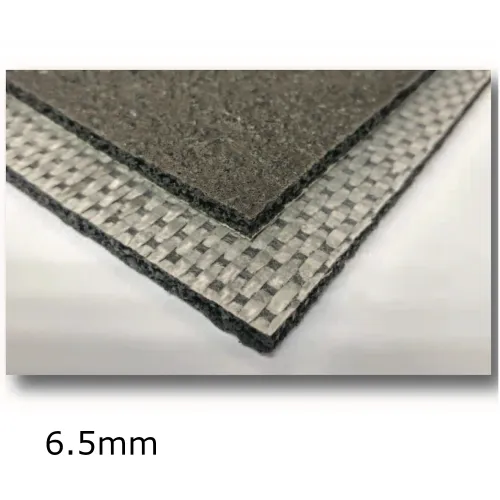

6.5mm Isocheck Impact Mat 100 - Acoustic Underlay

Thickness: 6.5mm
Width: 1200mm
Length: 12500mm
Roll Coverage: 15m2
Weight/m2: 2.6kg
Weight: 39kg

6.5mm Isocheck Impact Mat 100 is made from recycled rubber and designed to reduce sound transmission through timber floors and staircases. It has give an excellent impact improvement and has dynamic stiffness - structural memory. It is ideal for floor upgrades to improve sound reduction on stairs and under engineered floors. The system enables a timber floor to meet the sound transmission standards of Approved Document E 2003 and amendments in 2004, 2010, 2013 & 2015.

CHARACTERISTICS
  • Great acoustic properties,
  • Ideal for impact sound reduction,
  • Especially designed for timber floors and staircases,
  • Able to meet values prescribed by the Approved Document E of the Building Regulations, when installed as part of a complete sound reduction system.
APPLICATION

Isocheck Impact Mat 100 is applicable in new build, refurbishment and conversion applications, including listed buildings where minimal structural change is of importance, to be used in timber floors and staircases.

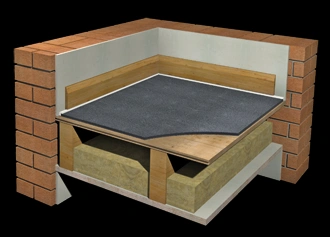

Isocheck Impact Mat 100

INSTALLATION
Prior to installation of the system, the following considerations and preparations must be taken:
  • the products should be fixed between the carpet or timber floor and sub-floor;
  • the sub-floor must be dry, clean and smooth;
  • any floor coverings must be removed;
  • all timber floorboards must be securely fixed and evened;
  • concrete floor must be free of any gaps or holes which can be properly filed with some type mortar or silicone sealant;
  • any doors opened into the room must be removed.

The mat is rolled directly onto the sub-floor surface, so that it covers the entire area and turned or butted up at all perimeter walls. If the mat is installed on top of the finished floor, the skirting must be removed and replaced, while when installed on top of a carpet, the mat should go all the way through to the gripper rail edge.

The mat should be bonded to the sub-floor surface by using the adequate adhesive, while the adjoining edges should be butted to the walls with building tape. The mat must be properly protected from any type of potential mechanical damage whereas timber and vinyl coverings and carpets can be laid directly on the mat, but solid timber flooring should be pinned to min 12mm plywood.

CERTIFICATION

The product is in compliance with Approved Document E of the Building Regulations.
