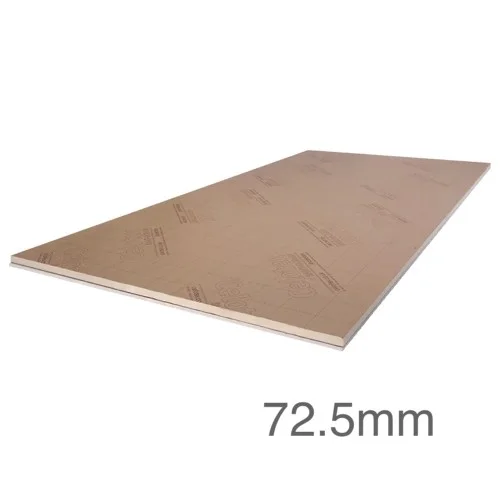

72.5mm Celotex PL4060 - 60mm PIR Insulation Bonded to 12.5mm Plasterboard (PL4000)

72.5mm Celotex PL4060 - 60mm PIR  Insulation Bonded to 12.5mm Plasterboard (PL4000)
72.5mm Celotex PL4060 - 60mm PIR  Insulation Bonded to 12.5mm Plasterboard (PL4000)
72.5mm Celotex PL4060 - 60mm PIR  Insulation Bonded to 12.5mm Plasterboard (PL4000)
72.5mm Celotex PL4060 - 60mm PIR  Insulation Bonded to 12.5mm Plasterboard (PL4000)
72.5mm Celotex PL4060 - 60mm PIR Insulation Bonded to 12.5mm Plasterboard (PL4000)
Price: £57.97 (£69.56 inc VAT)
Price per m2: £20.13/m2 (£24.15 inc VAT)
10 or more £57.02 (£68.42 inc VAT)
15 or more £56.08 (£67.30 inc VAT)
20 or more £54.65 (£65.58 inc VAT)
  • Product Code: A1-174
  • Delivery Time: 2 - 3 working days
  • Brand: Celotex
  • (Tech. support: 01473820850)
  • Model and Size: 1200x2400mm - 2.88m2
  • Weight: 29.12kg
Our ratings on 18-04-2024:
TrustPilot Review 4.6
4.6 out of 5 - Excellent
Google My Business Reviews
4.8 out of 5

Related Products

Brand: British Gypsum Delivery Time: 999
Delivery Time: 1 - 2 days
Gyproc Dri-Wall Adhesive is a general purpose gypsum-based adhesive for use with DriLyner systems, on high, medium or low suction backgrounds. Gyproc ..
£12.24
£14.69 inc VAT
Brand: Insofast Delivery Time: 999
Delivery Time: 1 - 2 days
105mm Staifix Insofast Anchor is a robust one-piece metal fastener designed to securely attach drywall and insulated plasterboard panels to walls. Thi..
£216.34
£259.61 inc VAT
Brand: Speedline Delivery Time: 9999
Delivery Time: 1 - 2 days
 48mm x 90m Speedline Drywall Fibreglass Tape, a flexible self-adhesive scrim tape to cover plasterboard joints...

72.5mm Celotex PL4060 - 60mm PIR Insulation Bonded to 12.5mm Plasterboard (PL4000 range)

Width: 1200mm
Length: 2400mm
Density: 140kg/m3
Weight/m2: 10.15kg
Weight: 29.12kg
Thermal Conductivity: 0.023W/mK
R-Value: 2.8m2K/W
Compressive Strength: 120kPa
Fire Rating (Reaction to Fire): B(Class 0)

72.5mm Celotex PL4060 is a high-performance thermal insulation board where the 60mm PIR insulation is bonded to 12.5mm tapered edge plasterboard. PL4000 is manufactured from rigid polyisocyanurate (PIR) using a blend of blowing agents that have zero ozone depletion potential (zero ODP) and low global warming potential (GWP).

Note: Also known as PL3060 from January 2018.

Application

Celotex PL4060 is purpose-designed to provide thermal insulation and plasterboard as one product. It can be specified for various applications, including:

  • The underlayer of insulation between and under rafter and joist applications
  • Solid masonry walls
  • Timber frame lining applications

Features

  • Enables installation of insulation and plasterboard in one operation, reducing installation time
  • Suitable for both direct bonding (dot and dab) and mechanically fixed installation techniques
  • Provides flexibility and improved installation speed due to tapered edge plasterboard
  • Offers reliable long-term energy savings for buildings
  • Suitable for new build and refurbishment projects
  • Easily upgrades to current building regulation standards
  • Can be used in pitched roof, flat roof, and wall applications
  • The plasterboard used in PL4060 is Class O according to Building Regulations

Certification

  • Celotex PL4060 is CFC/HCFC-free with zero ozone depletion potential (ODP) and low global warming potential (GWP)
  • Manufactured in accordance with quality management systems BS EN ISO 9001:2000 by Celotex Limited
  • All products must be installed following instructions issued by Celotex Limited
  • Celotex PIR insulation is independently assessed by BRE Global and accredited with an A+ rating compared to the BRE Green Guide 2008
