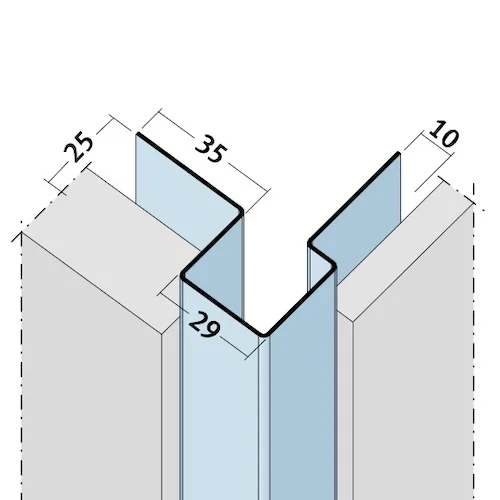

Aluminium Facade Corner Profile Without Covered Cutting Edges - Profile 9485 - length of 3m - pack of 10

Aluminium Facade Corner Profile Without Covered Cutting Edges - Profile 9485 - length of 3m - pack of 10

Length: 3000mm
Pack Quantity: 10

Aluminium Facade Corner Profile Without Covered Cutting Edges - Profile 9485 length of 3m. Corner profiles cover the cutting edges of the facade boards and form a clean, precise edge. Vertical corner profiles must be fastened at one fixed point at the top. If conditions require multiple fastening points on a profile, the other fastenings must be sliding points. Profiles must always be mounted without pressure or stress to allow for expansion. The installation temperature must be taken into consideration and maintain the necessary distances at profile joints. Like most components of rear-ventilated curtain walls, the facade profiles must not be constrained. Always allow for linear expansion in the profiles.

INSTALLATION

  • The vertical corner profile should correspond with a joint of the facade cladding.
  • Corner profiles can also be offset with the joint of the facade cladding, where applicable..
  • Joint tapes can prevent water from penetrating.
  • Always allow for linear expansion in the profiles.






50mm Aluminium Vented Base Track - for steel construction.
Guide Price
Brand: Wemico Model: 90905S
Delivery Time: 1 - 2 days
50mm box shaped Aluminium Vented base profile for external thermal insulation board, created to match the new regulations that demand different air flow rates within cavities of steel frame and timber frame structures. Connectors and render clips are also available to suit this product.Note: Please ..
Guide Price: £15.77
£18.92 inc VAT
110mm WEC 771 Verge Trim Profile - 2.5m length
Guide Price
Brand: Wemico Model: WEC 771
Delivery Time: 1 - 2 days
100mm WEC 771 Verge Trim Profile is designed for use in situations where sealing the rear of the profile is possible. This profile also has an increased drip section to improve visual appearance and a large front face to help prevent the water blowing up and soaking the insulation.Manufactured in 1...
Guide Price: £25.81
£30.97 inc VAT
Brand: Wemico Model: 37525
Delivery Time: 1 - 2 days
10mm PVC Corner profile with an extended arris and 100x150mm alkali resistant glass fibre mesh wings, which allows it to be cut to the required length and reduces waste. 2.5m length...
£146.65
£175.98 inc VAT
150mm WEC 771 OverTrim Profile - 2.5m length
Guide Price
Brand: Wemico Model: WEC 771OT - 150mm
Delivery Time: 1 - 2 days
150mm WEC 771 Verge OverTrim Profile is designed for use in situations where sealing the rear of the profile is possible. This profile also has an increased drip section to improve visual appearance and a large front face to help prevent the water blowing up and soaking the insulation.Manufactured i..
Guide Price: £31.09
£37.31 inc VAT
590mm Aluminium Rail System Connector (pack of 50).
Guide Price
Brand: Wemico Model: 9114
Delivery Time: 1 - 2 days
590mm Aluminium Rail System Connector profile to be used in an External Thermal Insulation Systems with 60mm EPS. Can be used with other stiff insulation boards.INSTALLATIONFix the starter track of the rail system to the wall with dowel screws to the substrate. Dowels should be installed at a max. s..
Guide Price: £97.23
£116.68 inc VAT
180mm WEC 732 Undersill Profile with End Caps
Guide Price
Brand: Wemico Model: WEC 732 - 180mm
Delivery Time: 1 - 2 days
The WEC 732 profile has an increased drip section to improve visual appearance and a large front face to help prevent water blowing up and soaking the insulation. The new design of drip also allows the end caps to be riveted into position. Manufactured from 1.2mm pre-coated white aluminium, in lengt..
Guide Price: £37.48
£44.98 inc VAT
