British Gypsum Gypframe Shaftwall G110 Retaining Channel (pack of 10)

British Gypsum Gypframe Shaftwall G110 Retaining Channel (pack of 10)
Price: £86.42 (£103.70 inc VAT)
5 or more £85.00 (£102.00 inc VAT)
10 or more £83.58 (£100.30 inc VAT)
20 or more £81.47 (£97.76 inc VAT)
  • Product Code: A1-850
  • Delivery Time: 2 - 3 working days
  • Brand: British Gypsum (Tech. support: 01159456123)
  • Model: G110 - 2.4 m
  • Weight: 7.92kg
Our ratings on 08-10-2026:
Google My Business Reviews
4.8 out of 5

British Gypsum Gypframe Shaftwall G110 Retaining Channel (pack of 10)

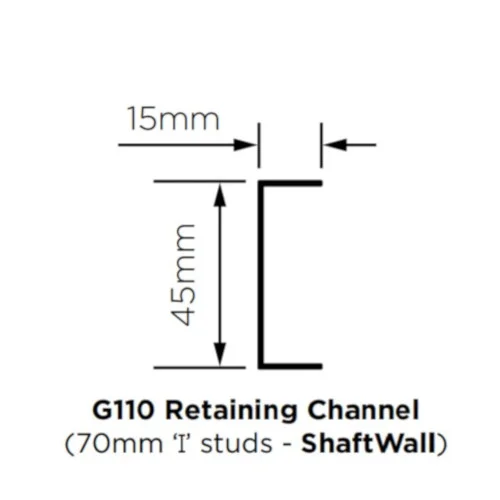

Gauge: 0.5mm
Width: 45mm
Length: 2400mm
Weight: 7.92kg

British Gypsum Gypframe Shaftwall G110 Retaining Channel is one of the available Gypframe channels, especially designed to be used with the ShaftWall System, a lightweight system which can be installed in the early construction phase, especially applicable to areas with limited access, providing a fire-protective structure for the inner elements. It is designed to meet air pressure and deflection requirements, but also the boundary requirements prescribed by the applicable Approved Document B of the Building Regulations. The system can be found in stairwells, service ducts and risers and lift shafts, providing a protective enclosure.

APPLICATION

Shaftwall G110 Retaining Channel is used for high performance ShaftWall System.

CERTIFICATION

The product is in compliance with the:

  • European Standard EN 14195
