Kingspan Aquazone - Water Infiltration Reduction Membrane for Inverted Roofs

Kingspan Aquazone - Water Infiltration Reduction Membrane for Inverted Roofs
Rate this product
Kingspan Aquazone - Water Infiltration Reduction Membrane for Inverted Roofs
Price: £566.21 (£679.45 inc VAT)
Price per m2: £1.89/m2 (£2.26 inc VAT)
  • Product Code: A1-2023
  • Delivery Time: 3 - 5 days
  • Brand: Kingspan (Tech. support: 01544388601)
  • Model: 3m x 100m - 300m2
  • Weight: 20.00kg
Our ratings on 28-10-2026:
Google My Business Reviews
4.8 out of 5

Kingspan Aquazone - Water Infiltration Reduction Membrane for Inverted Roofs

Roll Coverage: 300m2
Weight/m2: 0.06kg

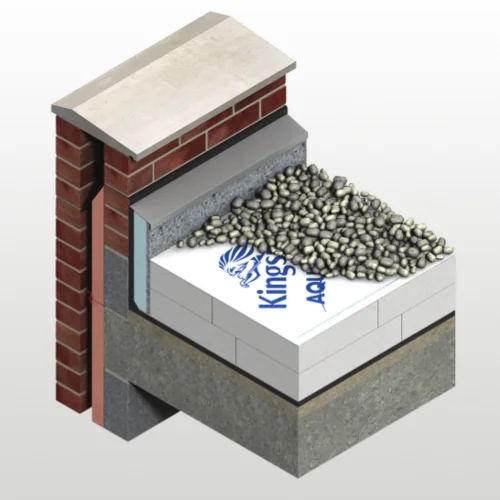

Kingspan Aquazone is a high performance non-woven polyethylene membrane suitable for use on inverted roofs finished with gravel ballast, green roof systems and concrete pavers on appropriate supports. Kingspan Aquazone can can dramatically minimise the cooling effect associated with rainwater flowing down through the insulation and draining away. It can significantly reduce the insulation thicknesses required to achieve specified Uvalues.

CHARACTERISTICS
  • Excellent water vapour permeability,
  • Resistant to the passage of water,
  • Reduces insulation thicknesses required to achieve specified U-values,
  • Durable heat and UV stable,
  • Lightweight,
  • Easy to handle and install,
  • Ideal for new build and refurbishment,
  • Resists mould and bacterial growth, and does not provide food value to vermin
INSTALLATION
  • Kingspan Aquazone should be loose-laid over the insulation,
  • Where one run of membrane overlaps another, there should be minimum 300 mm side and end laps,
  • Upper layers of the membrane should be laid over lower layers to ensure water penetration is minimised.
  • At junctions, e.g. upstands, parapets and penetrations, Kingspan Aquazone should be turned up to finish above the surface of the ballast layer.
  • Kingspan Aquazone should be star-cut and dressed down at drainage outlets.
  • This membrane should be turned up at the edges of the roof insulation and sealed under the flashing.
CERTIFICATION: Kingspan Aquazone is manufactured to the highest standards under a management system certified to ISO 9001: 2008 (Quality Management Systems. Requirements) and ISO 14001: 2004.
