PlastiClad Aluminium Arrow Head Style External Corner AL/EX10 - For Any 10mm Panel - 3055mm Length
PlastiClad Aluminium Arrow Head Style External Corner AL/EX10 - For Any 10mm Panel - 3055mm Length
- Product Code: A1-6732
- Delivery Time: 7 - 10 days
- Brand: Plastestrip (Tech. support: 0172674771)
- Model: AL/EX10
Our ratings on 13-04-2026:
4.8 out of 5
PlastiClad Aluminium Arrow Head Style External Corner AL/EX10 - For Any 10mm Panel - 3055mm Length

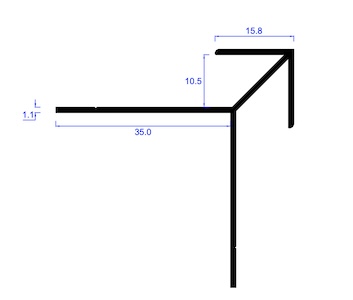

Length: 3055mm
Thickness: 1.1mm
Plasticlad Aluminium Arrow Head Style External Corner AL/EX10 is a specialised profile trim designed to provide a highly distinct, durable, and clean finish where two cladding panels meet at an outward-facing angle. It is known for its sharp, V-shaped profile, offering a minimalist alternative to bulkier box trims.
This trim is extruded from high-grade aluminium and is distinguished by the manufacturer’s rigorous finishing process:
- Made from 6063 - T6 Aluminium.
- Unlike many standard trims on the market, Plasticlad ensures a high quality and durable finish by applying a polyester powder coating to all its aluminium profiles and fixings. This process provides a tougher, longer-lasting surface than standard paint or anodising, offering exceptional resistance to scratching, fading, and chemical degradation.

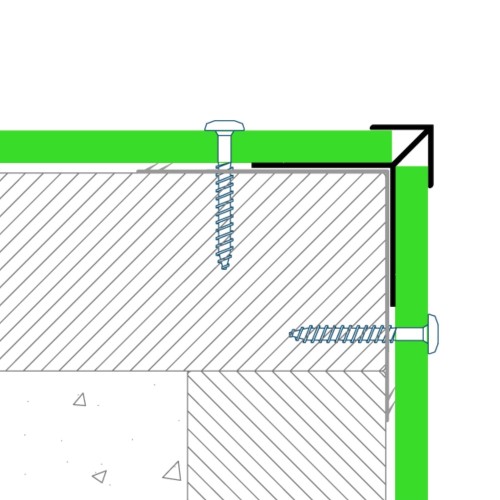

- Unlike the Box Style, the Arrow Head profile creates a sharp, pointed V-shape at the corner apex, which visually resembles an arrowhead or a narrow bevel.
- Available in 28 RAL colours.
- All stock powders are 80 – 85% gloss value also known as full gloss.
Plastestrip-Aluminium-6063-2-data-sheet.pdf
