PlastiClad Aluminium J Style Edge Trim AL/78 - For Any 8mm Panel - 3055mm Length
PlastiClad Aluminium J Style Edge Trim AL/78 - For Any 8mm Panel - 3055mm Length
- Product Code: A1-6756
- Delivery Time: 7 - 10 days
- Brand: Plastestrip (Tech. support: 0172674771)
- Model: AL/78
Our ratings on 27-01-2026:
4.8 out of 5
PlastiClad Aluminium J Style Edge Trim AL/78 - For Any 8mm Panel - 3055mm Length
Length: 3055mm
Thickness: 1.1mm

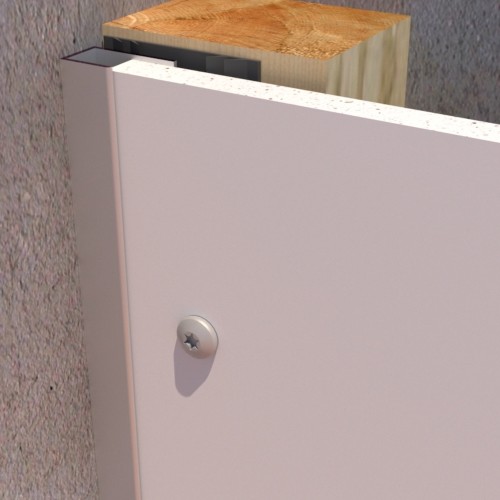

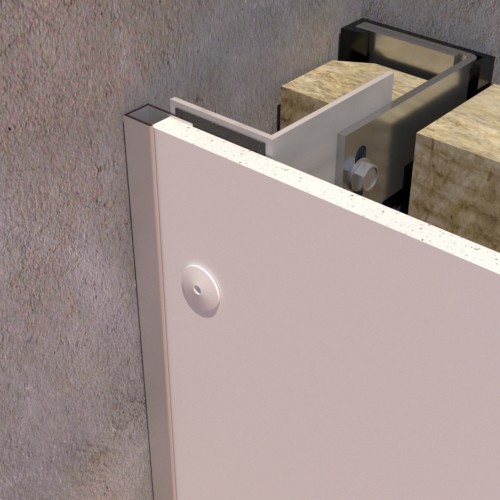

PlastiClad Aluminium J Style Edge Trim AL/78 - For Any 8mm Panel is a multifunctional finishing profile designed to provide a crisp, clean termination for cladding panels. It is typically used where a cladding run ends—such as against a door frame, a window reveal, or when transitioning to a different building material like brick or render.
This trim is extruded from high-grade aluminium and is distinguished by the manufacturer’s rigorous finishing process:
- Made from 6063 - T6 Aluminium.
- Unlike many standard trims on the market, Plasticlad ensures a high quality and durable finish by applying a polyester powder coating to all its aluminium profiles and fixings. This process provides a tougher, longer-lasting surface than standard paint or anodising, offering exceptional resistance to scratching, fading, and chemical degradation.

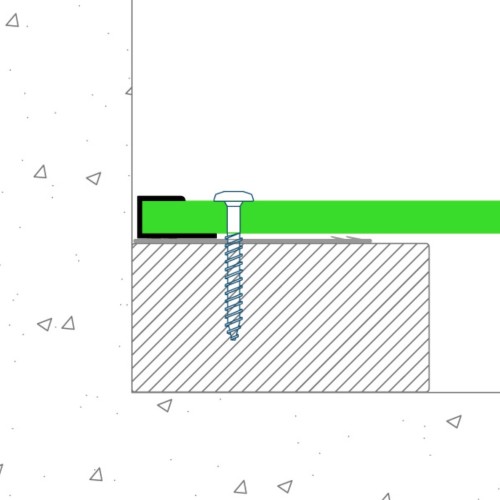

- The profile features a single deep channel (forming the "J" shape). The long back leg is fixed directly to the timber battens, while the shorter front "return" leg wraps around the face of the cladding panel to conceal the raw, cut edge.
- Available in 28 RAL colours.
- All stock powders are 80 – 85% gloss value also known as full gloss.
Plastestrip-Aluminium-6063-2-data-sheet.pdf
