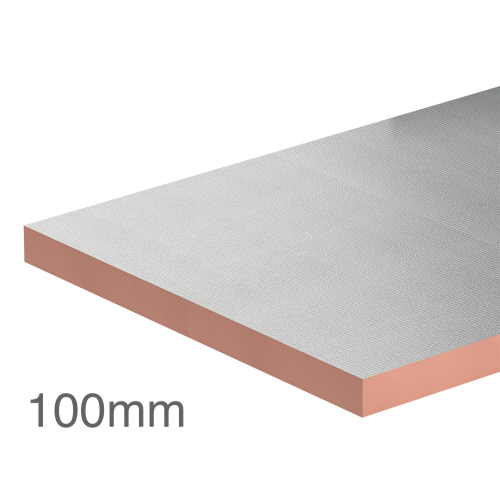

100mm Kingspan Kooltherm K110 Soffit Insulation Board (pack of 3) - 2400mm x1200mm

100mm Kingspan Kooltherm K110 Soffit Insulation Board (pack of 3) - 2400mm x1200mm
100mm Kingspan Kooltherm K110 Soffit Insulation Board (pack of 3) - 2400mm x1200mm
100mm Kingspan Kooltherm K110 Soffit Insulation Board (pack of 3) - 2400mm x1200mm
100mm Kingspan Kooltherm K110 Soffit Insulation Board (pack of 3) - 2400mm x1200mm
100mm Kingspan Kooltherm K110 Soffit Insulation Board (pack of 3) - 2400mm x1200mm
  • Product Code: A1-6767
  • Delivery Time: 7 - 10 days
  • Brand: Kingspan
  • (Tech. support: 01544388601)
  • Model: 2400mm x1200mm - 8.64m2
  • Weight: 34.56kg
Our ratings on 13-04-2026:
Google My Business Reviews
4.8 out of 5
Show other thicknesses

To GET BEST PRICE for this product only fill below:

Need a quote for more products? Add to Quote and continue browsing to find other materials needed.

100mm Kingspan Kooltherm K110 Soffit Insulation Board (pack of 3) - 2400mm x1200mm

Length: 2400mm
Width: 1200mm
Thickness: 100mm
Pack Quantity: 3
Board Coverage: 2.88m2
Pack Coverage: 8.64m2
Density: 40kg/m3
Weight/m2: 4kg
Weight: 34.56kg
Thermal Conductivity: 0.019W/mK
R-Value: 5.25m2K/W
Compressive Strength: 100kPa
Fire Rating (Reaction to Fire): C(Class 1)
Fire rating: Class 0
Water vapour resistivity: 41.6MN.s/g.m

100mm Kingspan Kooltherm K110 Soffit Board is a premium performance lower lambda insulation with a fibre-free rigid thermoset phenolic core, a 6mm glass tissue based facing on its front surface and low emissivity composite foil on its reverse surface.

CHARACTERISTICS

  • Safe and easy to handle and install,
  • Water vapour resistant,
  • Non-deleterious,
  • Very durable, depending on the structure and conditions of use,
  • Unaffected by air filtration,
  • High performance thermoset rigid insulation,
  • Applicable in both new build and refurbishment projects,
  • Kooltherm K110 now achieves a Euroclass B-s2,d0 Reaction to Fire rating, when installed correctly (with the foil face on the outside).
  • Note that the inner (non-exposed) glass tissue facing of Kooltherm K110 achieves C-s2,d0.

APPLICATION

  • For structural ceilings,
  • Concrete soffits,
  • Timber battens and grid systems



INSTALLATION

  • A minimum of 11 mechanical fixings, with a minimum head diameter of 35 mm, are required to secure the insulation board to the soffit.
  • The fixings should be evenly distributed over the whole area of the board, and must offer a minimum 40mm penetration into a solid substrate.
  • Fixings at board edges must be located > 50 mm and < 150 mm from edges and corners of the board and not overlap board joints.
  • Depending upon the fixing type, insulation boards can also be fitted by a shot fired fixing method, which can result in significantly faster installation times.

CERTIFICATION

  • ISO 9001: 2015 (Quality Management Systems. Requirements),
  • ISO 14001: 2015 (Environmental Management Systems. Requirements),
  • ISO 37301: 2021 (Compliance management systems),
  • ISO 45001: 2018 (Occupational health & safety management systems),
  • ISO 50001: 2018 (Energy Management Systems).
  • Certified to BES 6001 (Framework Standard for the Responsible Sourcing of Construction Products) ‘Good’.
