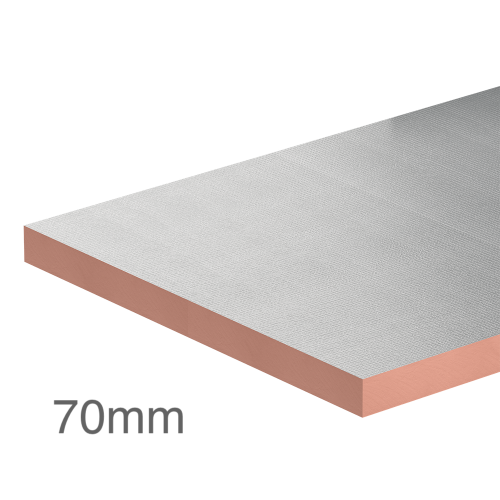

70mm Kingspan Kooltherm K110 Soffit Insulation Board (pack of 4) - 2400mm x1200mm
70mm Kingspan Kooltherm K110 Soffit Insulation Board (pack of 4) - 2400mm x1200mm
- Product Code: A1-6765
- Delivery Time: 7 - 10 days
- Brand: Kingspan (Tech. support: 01544388601)
- Model: 2400mm x1200mm - 11.52m2
- Weight: 32.26kg
Our ratings on 05-01-2026:
4.8 out of 5
70mm Kingspan Kooltherm K110 Soffit Insulation Board (pack of 4) - 2400mm x1200mm
Length: 2400mm
Width: 1200mm
Thickness: 70mm
Pack Quantity: 4
Board Coverage: 2.88m2
Pack Coverage: 11.52m2
Density: 40kg/m3
Weight/m2: 2.8kg
Weight: 32.26kg
Thermal Conductivity: 0.019W/mK
R-Value: 3.7m2K/W
Compressive Strength: 100kPa
Fire Rating (Reaction to Fire): C(Class 1)
Fire rating: Class 0
Water vapour resistivity: 41.6MN.s/g.m
70mm Kingspan Kooltherm K110 Soffit Board is a premium performance lower lambda insulation with a fibre-free rigid thermoset phenolic core, a 6mm glass tissue based facing on its front surface and low emissivity composite foil on its reverse surface.
CHARACTERISTICS
- Safe and easy to handle and install,
- Water vapour resistant,
- Non-deleterious,
- Very durable, depending on the structure and conditions of use,
- Unaffected by air filtration,
- High performance thermoset rigid insulation,
- Applicable in both new build and refurbishment projects,
- Kooltherm K110 now achieves a Euroclass B-s2,d0 Reaction to Fire rating, when installed correctly (with the foil face on the outside).
- Note that the inner (non-exposed) glass tissue facing of Kooltherm K110 achieves C-s2,d0.

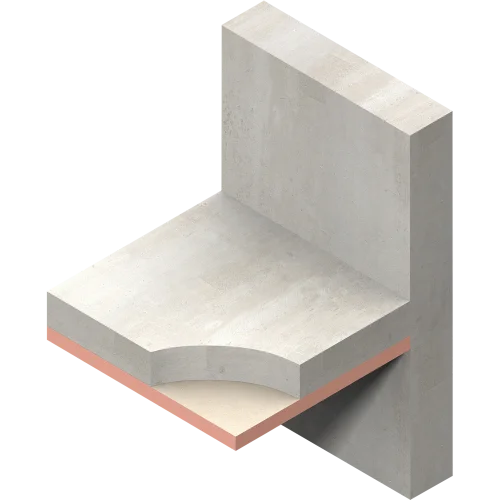

APPLICATION
- For structural ceilings,
- Concrete soffits,
- Timber battens and grid systems
INSTALLATION
- A minimum of 11 mechanical fixings, with a minimum head diameter of 35 mm, are required to secure the insulation board to the soffit.
- The fixings should be evenly distributed over the whole area of the board, and must offer a minimum 40mm penetration into a solid substrate.
- Fixings at board edges must be located > 50 mm and < 150 mm from edges and corners of the board and not overlap board joints.
- Depending upon the fixing type, insulation boards can also be fitted by a shot fired fixing method, which can result in significantly faster installation times.
CERTIFICATION
- ISO 9001: 2015 (Quality Management Systems. Requirements),
- ISO 14001: 2015 (Environmental Management Systems. Requirements),
- ISO 37301: 2021 (Compliance management systems),
- ISO 45001: 2018 (Occupational health & safety management systems),
- ISO 50001: 2018 (Energy Management Systems).
- Certified to BES 6001 (Framework Standard for the Responsible Sourcing of Construction Products) ‘Good’.
kingspan-kooltherm-k110-plus-datasheet-07.2025.pdf
